Removing and Installing/Replacing Control Unit/Module for Left or Right Seat Adjustment (Front)




61 35 080 - Removing and installing/replacing control unit/module for left or right seat adjustment





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead

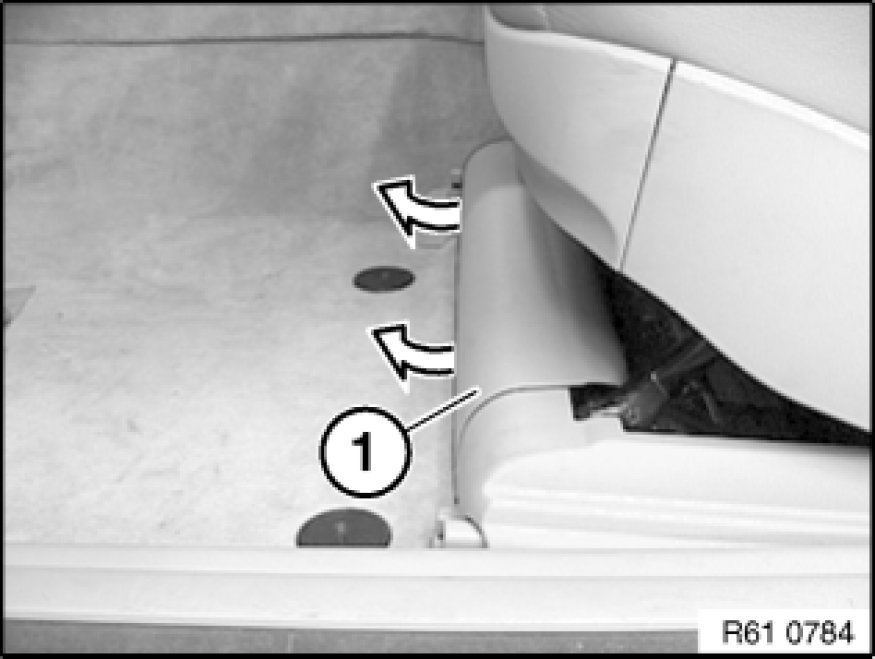

Unclip trim in upper rail at front (1) in direction of arrow and remove.

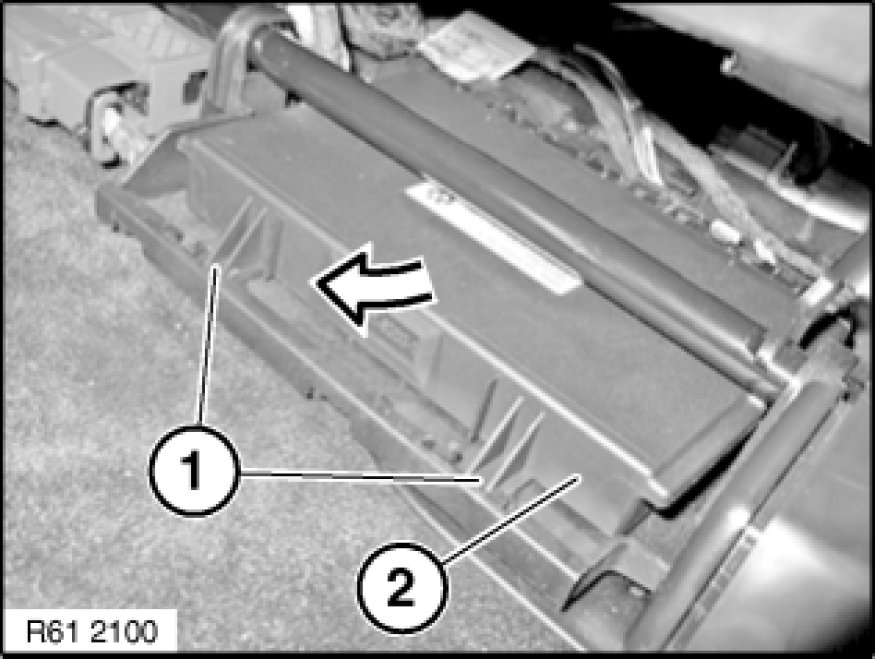

Unlock catches (1).
Feed out control unit for seat adjustment (2) in direction of arrow.





Disconnect plug connection (1).
Remove control unit for seat adjustment (2).





Installation Note:

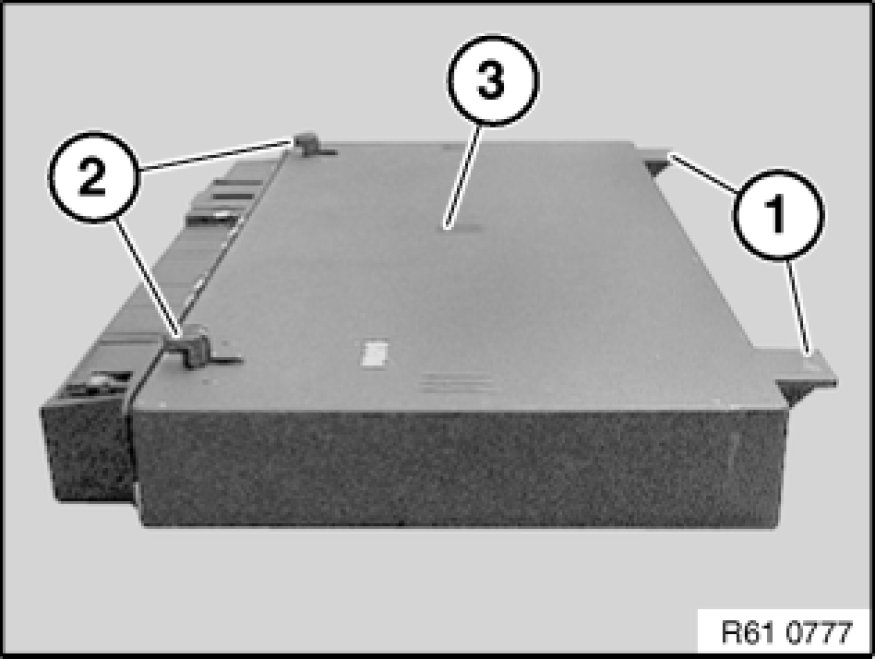

Make sure mounts (1) and retaining lugs (2) of control unit for seat adjustment (3) are correctly seated.





Replacement:
Carry out vehicle programming/coding Programming and Relearning.
