Removing and Installing/Replacing Control Unit/Module for Left or Right Seat Adjustment (Rear)




61 35 080 - Removing and installing/replacing control unit/module for left or right seat adjustment





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove left or right rear seat Backrest for Left or Right Rear Seat

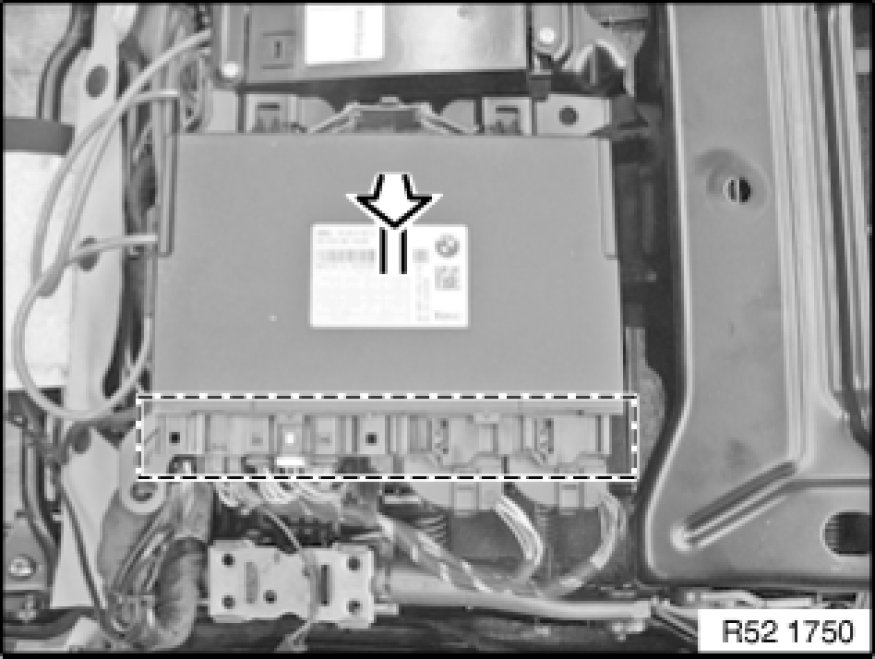

Unlock and disconnect all plug connections in marked area.

Installation Note:
Plug connections are coded against incorrect assembly.

Press control unit against spring and remove towards top.





Installation Note:
Make sure mounts (1) and retaining lugs (2) of control unit (3) are correctly seated.





Replacement:
Carry out vehicle programming/coding Programming and Relearning.
