Seat Temperature Control Module: Service and Repair




61 35 095 - Removing and installing control unit/module for seat heating (rear seat)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove and install rear seat Rear Seat - Normal

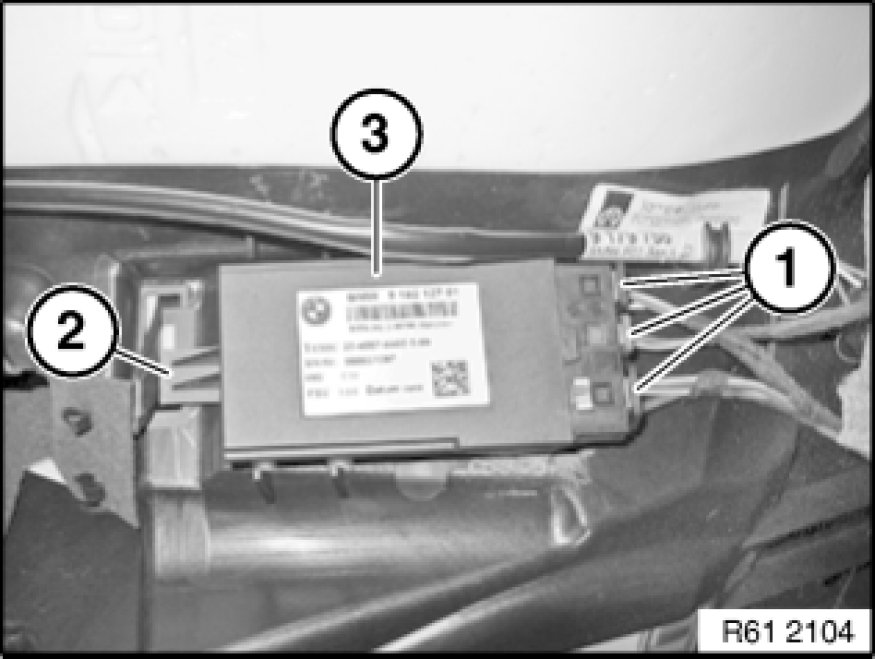

Disconnect plug connection (1).
Unclip clip (2) and remove control unit for seat heating (3).





Installation Note:

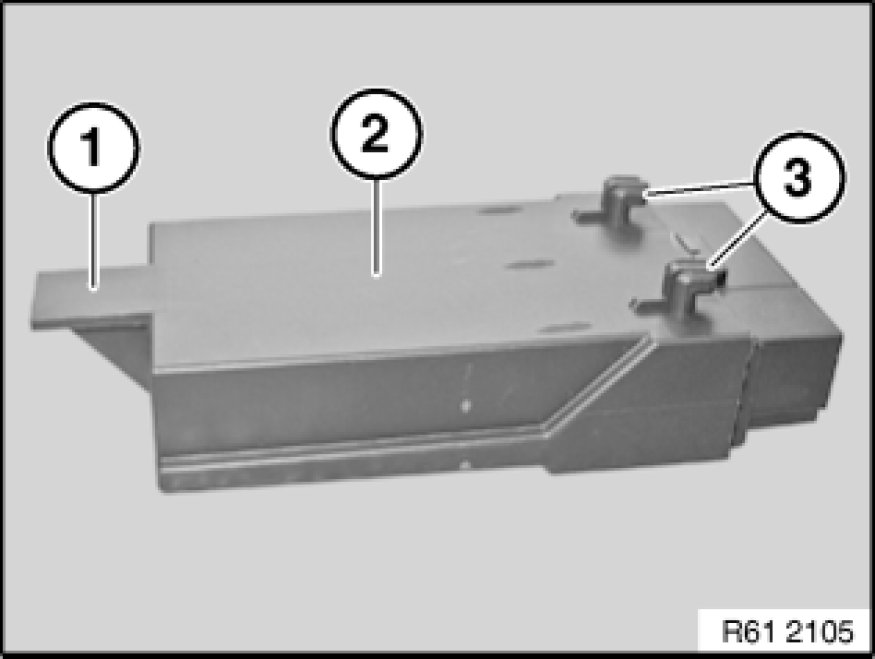

Make sure mount (1) and retaining lugs (3) of control unit for seat heating (2) are correctly seated.
