61 35 250 Removing and Installing Control Unit For Left Electric-Motor-Driven Retractor



61 35 250 Removing And Installing Control Unit For Left Electric-Motor-Driven Retractor







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
- Remove left B-pillar sensor







Version with electric motor retractor:

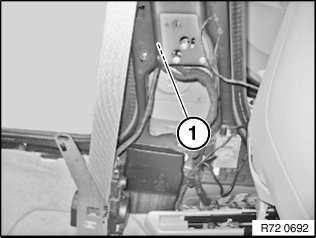

Release screws (1).

Installation note:
Replace screws.

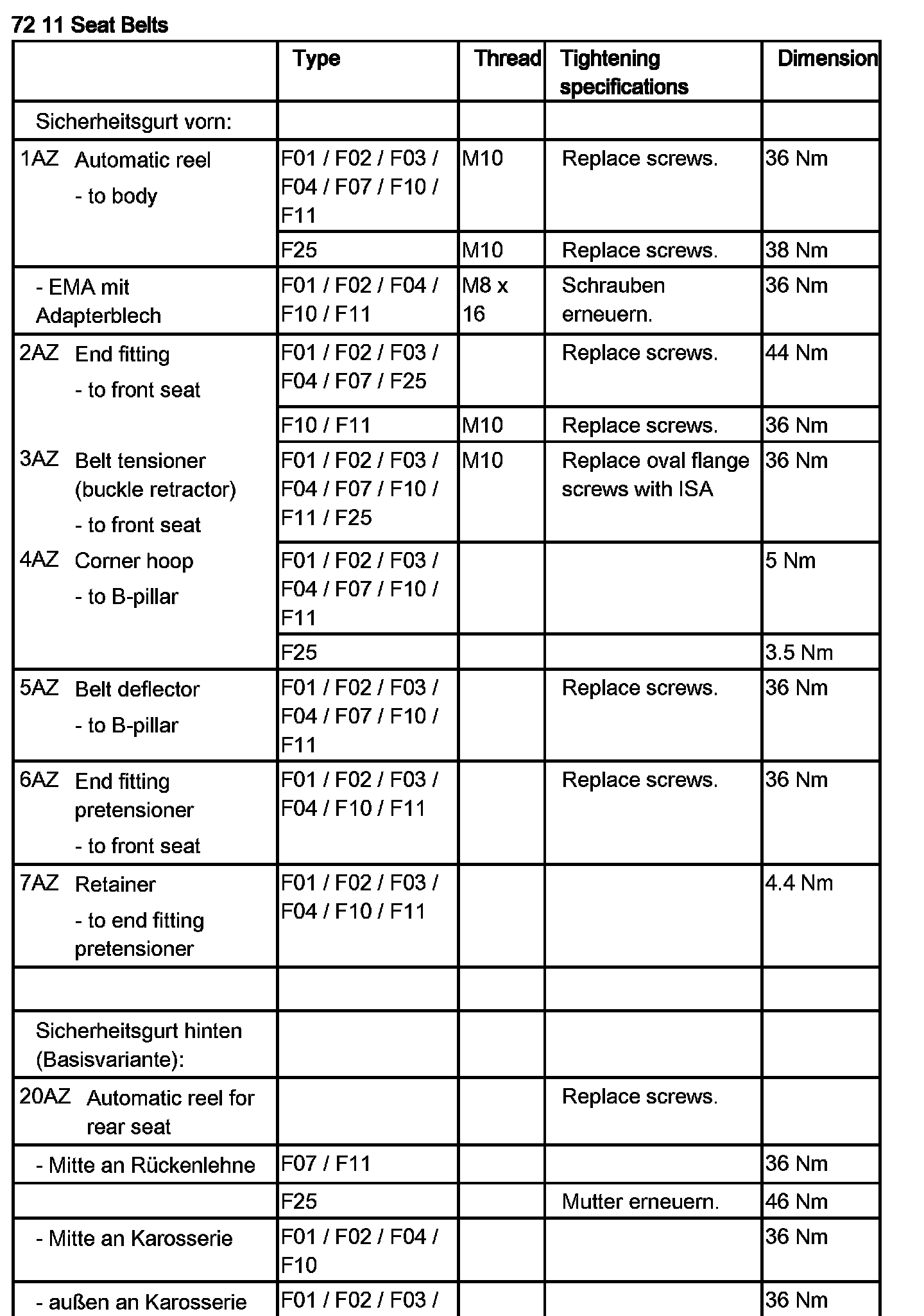

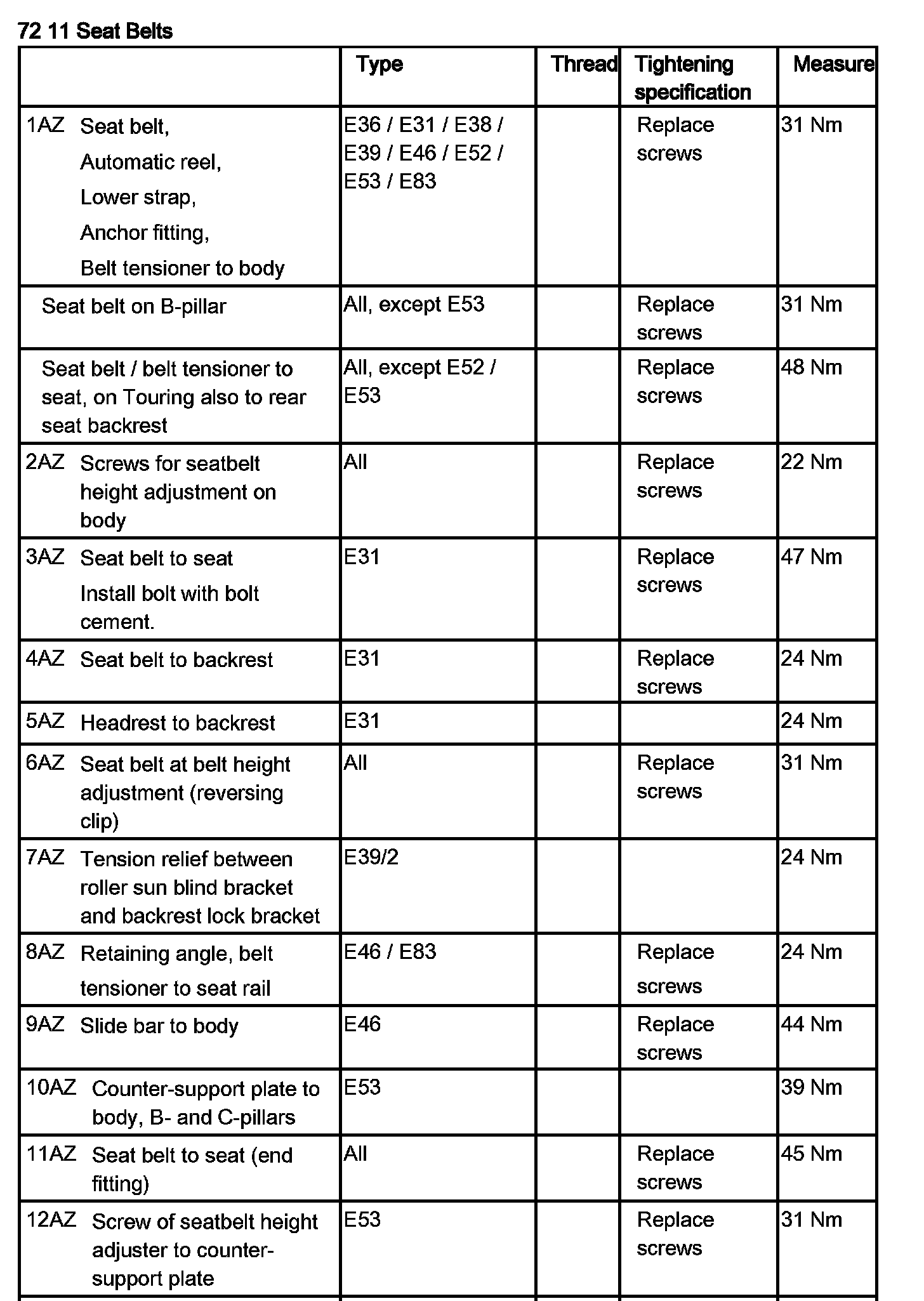

Tightening torque 72 11 01AZ.
Unlock automatic reel (2) and remove from B-pillar.

Installation note:
Retractor mechanism is coded against incorrect assembly.

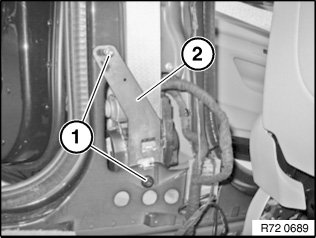

Unfasten plug connection (1) and disconnect.
Lay seat belt to one side.

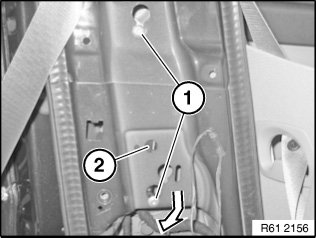

Slacken screws (1)
Raise control unit (2) at screws slightly.
Feed control unit (2) in direction of arrow out of B-pillar.

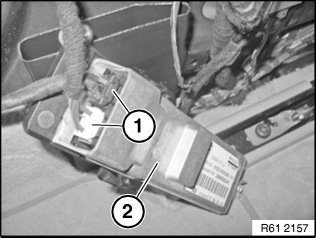

Unlock plug connections (1) and disconnect.
Remove control unit (2).
