65 76 605 Removing and Installing/Replacing Middle Pedestrian Protection Sensor



65 76 605 Removing and installing/replacing middle pedestrian protection sensor







WARNING:
Observe safety instructions for handling gas generators.
Incorrect handling can activate pedestrian protection and cause injury.







Necessary preliminary tasks:
- Disconnect battery cable
- Remove baseplate for number plate
- Remove ornamental grille in bumper trim.







Release screws (1).
Tightening torque 65 76 1AZ.
Feed out sensor (2).

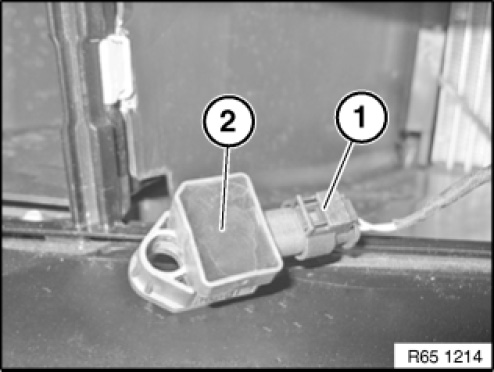

Unfasten plug connection (1) and disconnect.
Remove sensor (2).
