Replacing Controller For Heating And A/C System Fan
64 11 225 - Replacing controller for heating and A/C system fanNecessary preliminary tasks: -
Remove fan housing for heater/air conditioner

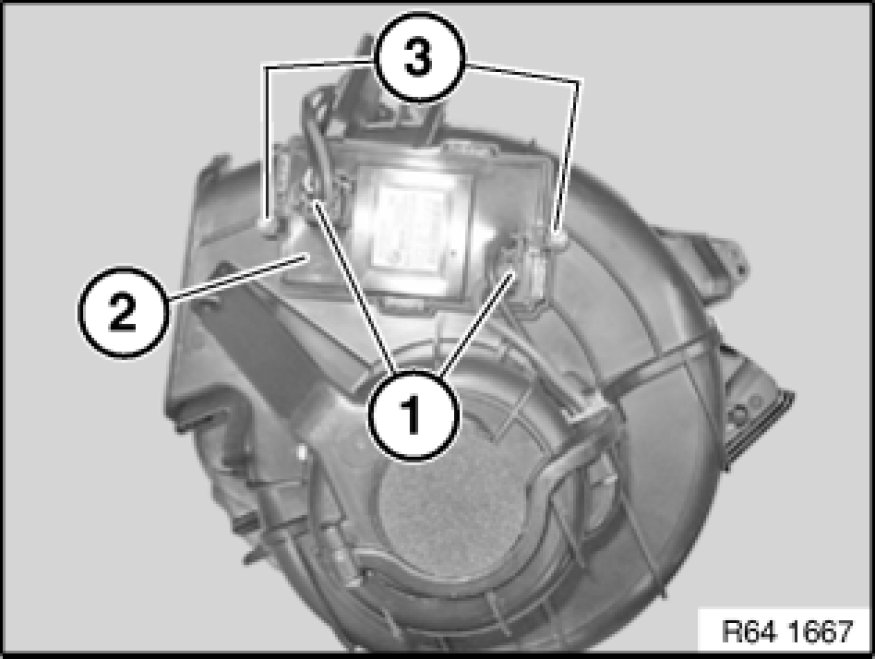

64 11 545 Removing and Installing Fan Housing For Heater/Air Conditioner FanUnlock plug connections (1) and disconnect.
Release screws (3).
Remove controller (2) towards top.
