Air Bag Control Module: Locations

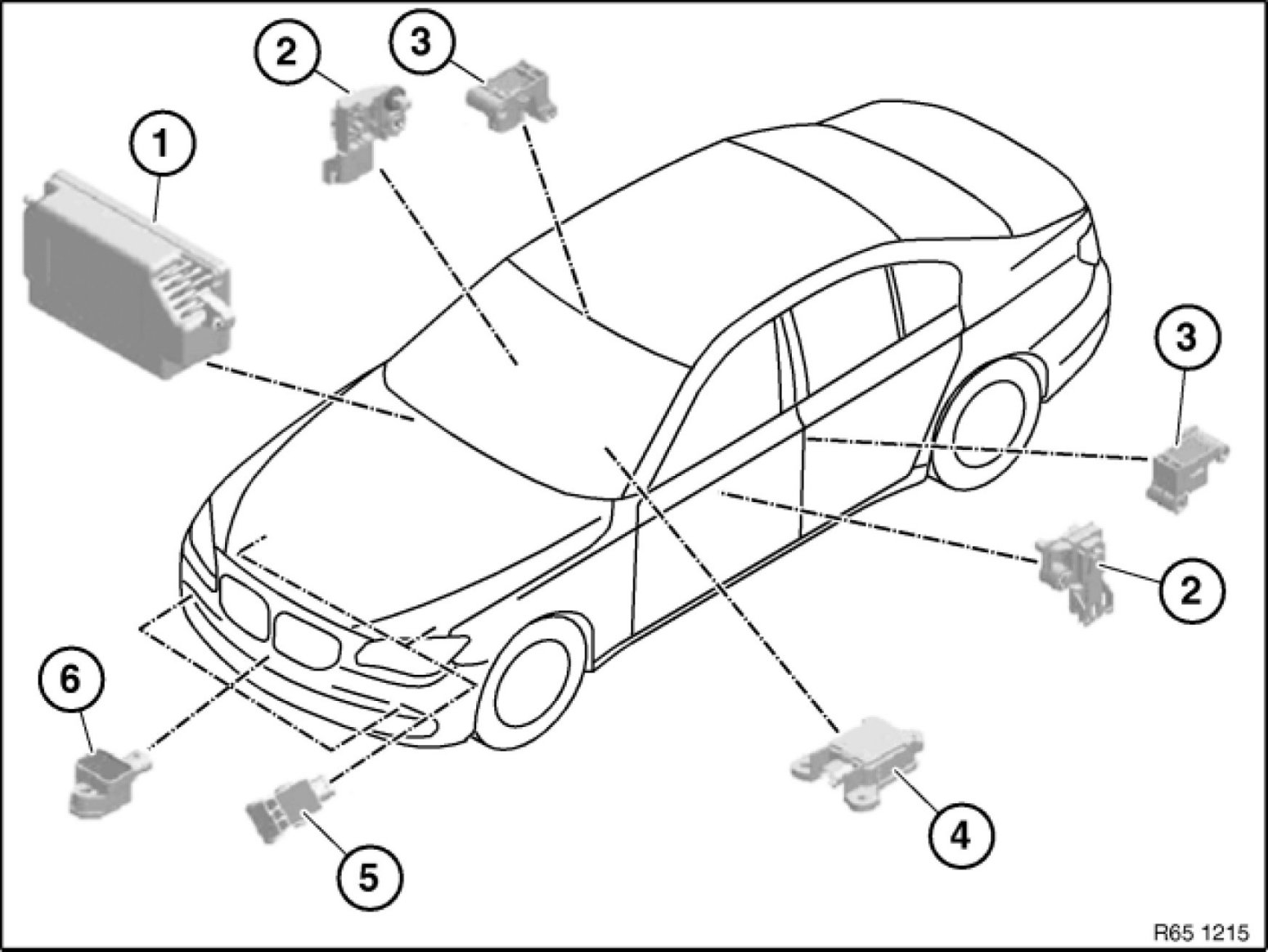

65 77 ... - Overview of sensors for airbag system and pedestrian protection

1. Airbag control unit Service and Repair (storage tray, passenger side)
2. Sensor, front door (left/right)
3. Sensor, B-pillar (left/right)
4. Central sensor 65 77 735 Removing and Installing/Replacing Central Sensor (under center console)
5. Acceleration sensors, front (left/right)
6. Sensor, pedestrian protection (middle/left/right)
