Steering Mounted Controls Communication Module: Service and Repair




61 31 231 - Removing and installing/replacing steering wheel electronics control unit





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove airbag unit 32 34 020 Removing and Installing/Replacing Airbag Unit





Note:

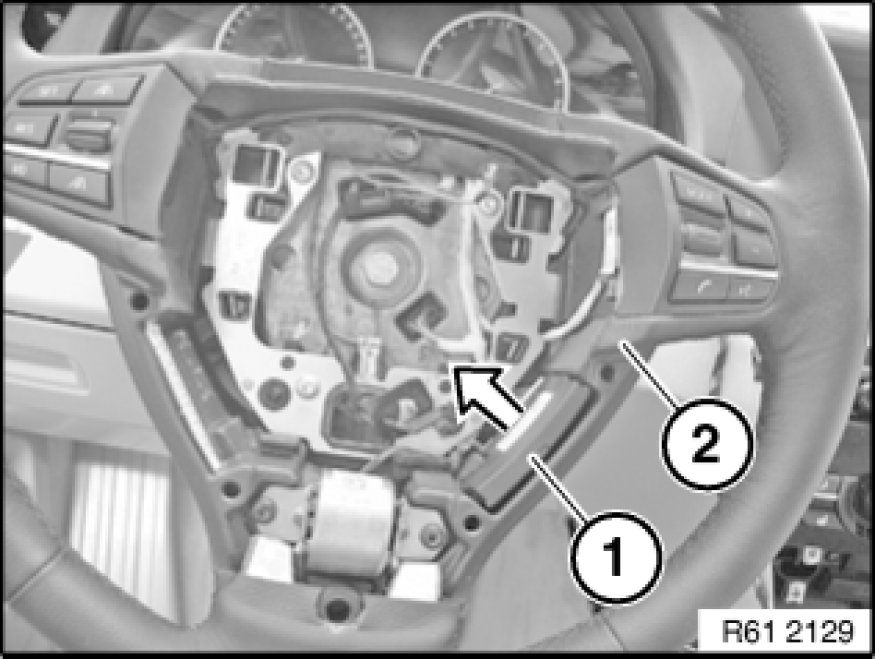

For purposes of clarity.
Picture shows steering wheel trim removed.

Remove steering wheel electronics control unit (1) in direction of arrow.

Disconnect plug connections behind.
Remove steering wheel electronics control unit (1).
