52 25 ... Removing and Installing Button and Trim For Button

52 25 ... Removing And Installing Button And Trim For Button

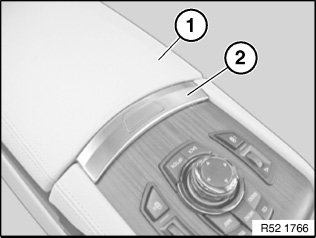

Open cover (1).

IMPORTANT: Tape off working area with fabric adhesive tape. Risk of damage.

Lever out trim (2) with plastic wedge in upward direction.

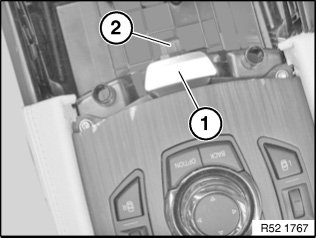

Unclip button (1) towards top.
Remove spring underneath.
Remove locking part (2) towards front.

Installation note:
Make sure spring is correctly seated under button (1).
