61 35 180 Replacing Rear Air Conditioning Control Unit



61 35 180 Replacing Rear Air Conditioning Control Unit







Necessary preliminary tasks:
- Remove all luggage compartment trim panels
- If necessary, remove cool box

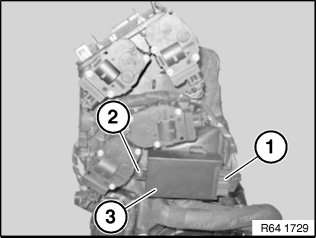

Unfasten plug connection (1) and disconnect.
Release screw (2).
Remove control unit (3).
