64 11 395 Removing and Installing Control Panel For Rear Cabin A/C System



64 11 395 Removing And Installing/Replacing Control Panel For Rear Cabin A/C System







Necessary preliminary tasks:
- Remove rear centre console trim







Following operations relate exclusively to replacement.

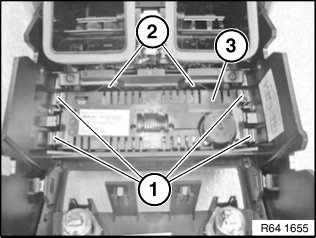

NOTE: Example graphic on the F01.

Unlock catches (1).
Press out control panel of rear cabin A/C system (3) downwards and remove from centre console trim.

Installation:
Catches (1) and (2) must perceptibly snap into corresponding guides.







Replacement:
- Modify fan motor
- Carry out vehicle programming and encoding
