65 83 570 Removing and Installing/Replacing CD Drive For Car Communication Computer



65 83 570 Removing And Installing/replacing CD Drive For Car Communication Computer

Special tools required:







IMPORTANT:
Read and comply with notes on protection against electrostatic discharge (ESD protection).
Risk of damage.
Place Car Communication Computer on special tool 12 7 192 (antistatic mat) and connect to earth/ground.







Necessary preliminary tasks:
- Remove front trim holder for Car Communication Computer

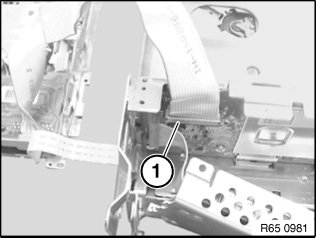

Release screws (1), remove CD drive and place to one side.

Installation:
Ensure correct routing of cables.







Replacement:

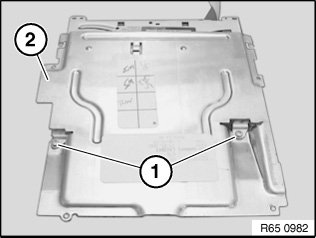

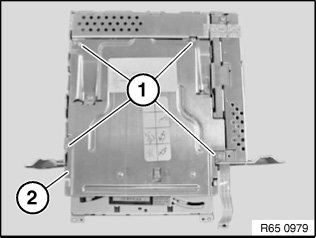

Release screws (1) and remove cover (2) from CD drive.

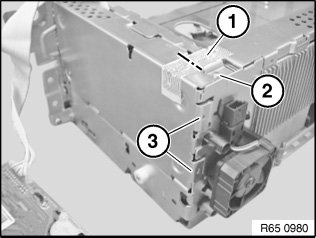

Cut through warranty seal (1) at marked point.
Release screw (2).
Lift side cover out of mounting (3) and carefully place to one side.







Disconnect plug connection (1) and remove CD drive.

Installation:
Ensure correct routing of cables.
