Control Assembly: Service and Repair

61 31 052 - Removing and installing centre console switch cluster

Necessary preliminary tasks:
- Remove trim for storage compartment 51 16 212 Removing and Installing Trim for Storage Compartment

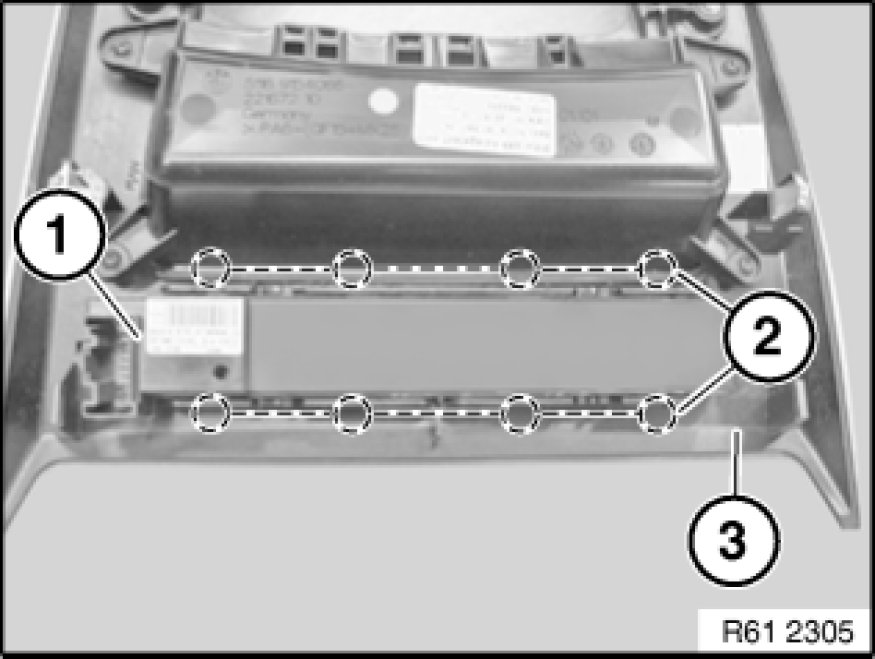

Unclip centre console switch cluster (1) at points (2).
Remove centre console switch cluster (1) from storage compartment (3).

Installation:
Make sure centre console switch cluster (1) is correctly engaged.
