Solar Sensor: Service and Repair




64 11 992 - Removing and installing or replacing solar sensor





Special tools required:

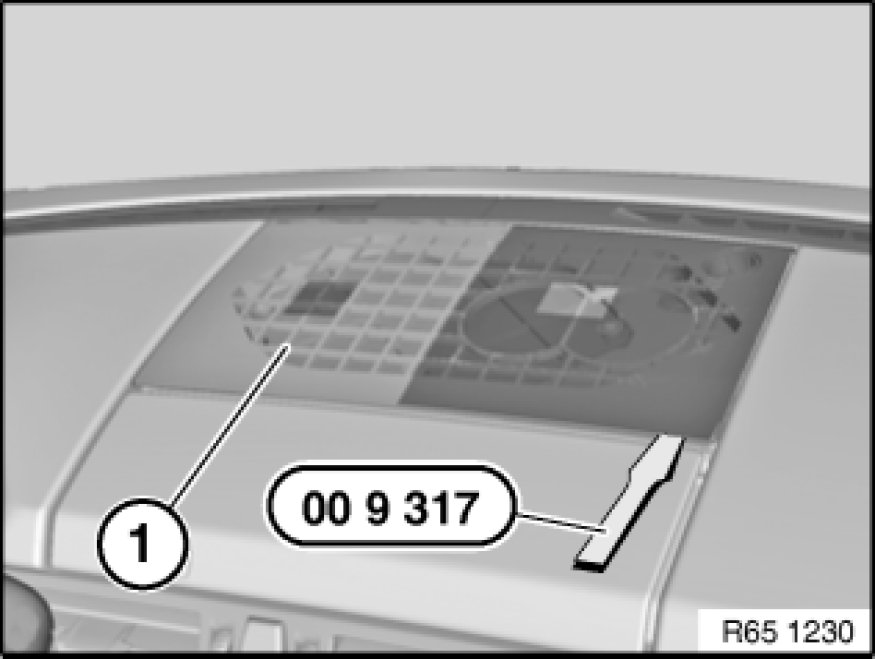

Unclip trim (1) with special tool 00 9 317 from catches and remove towards top.





Installation:

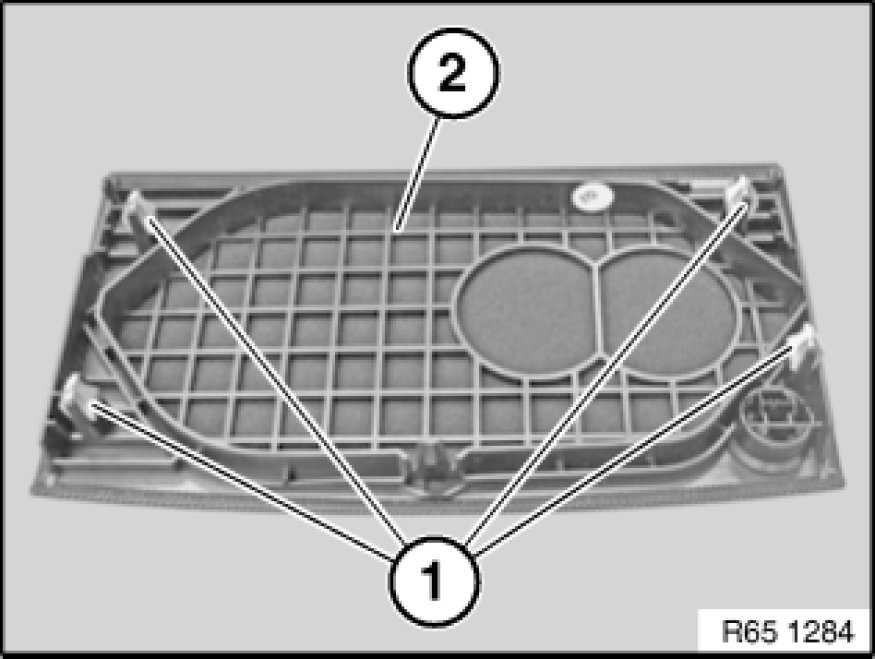

Retainers (1) on speaker trim (2) must be correctly seated on associated lugs and must not be damaged.

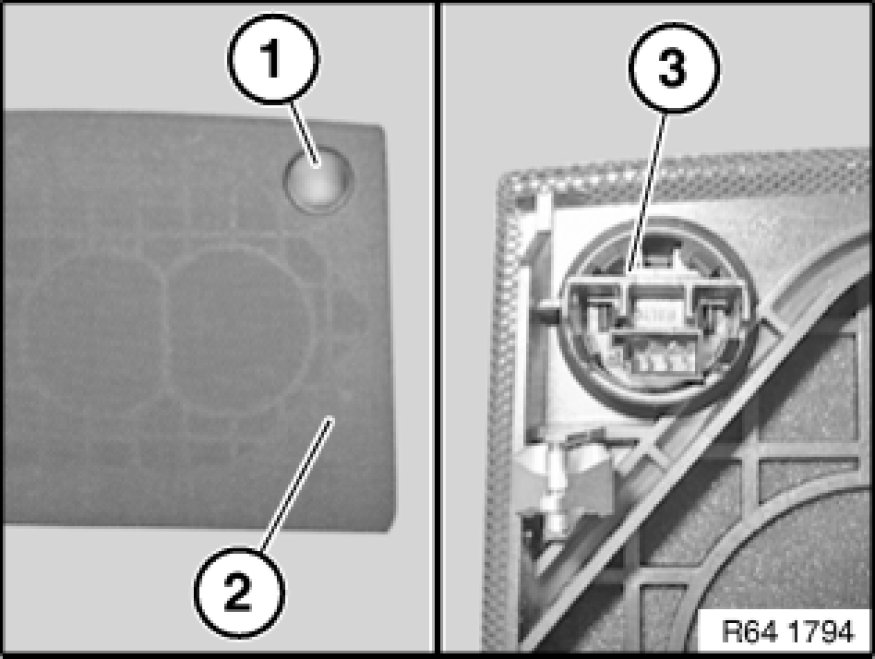

Unclip cover (1).

Remove speaker trim (2).

Unclip solar sensor (3) downwards from speaker trim (2).

Installation:
Retaining lugs on cover (1) and solar sensor (3) must not be damaged.
