Oil Pressure Sensor: Service and Repair




12 61 280 - Removing and installing/replacing oil pressure sensor (N54)





Necessary preliminary tasks:
- Switch off ignition
- Remove acoustic cover 11 00 ... Removing and Installing/Replacing Acoustic Cover





Warning!
Scalding hazard!
Only perform this task on an engine that has cooled down.





Installation location:
Oil filter housing, front left.
Engine oil may emerge when oil pressure sensor is replaced; have a cleaning cloth ready.

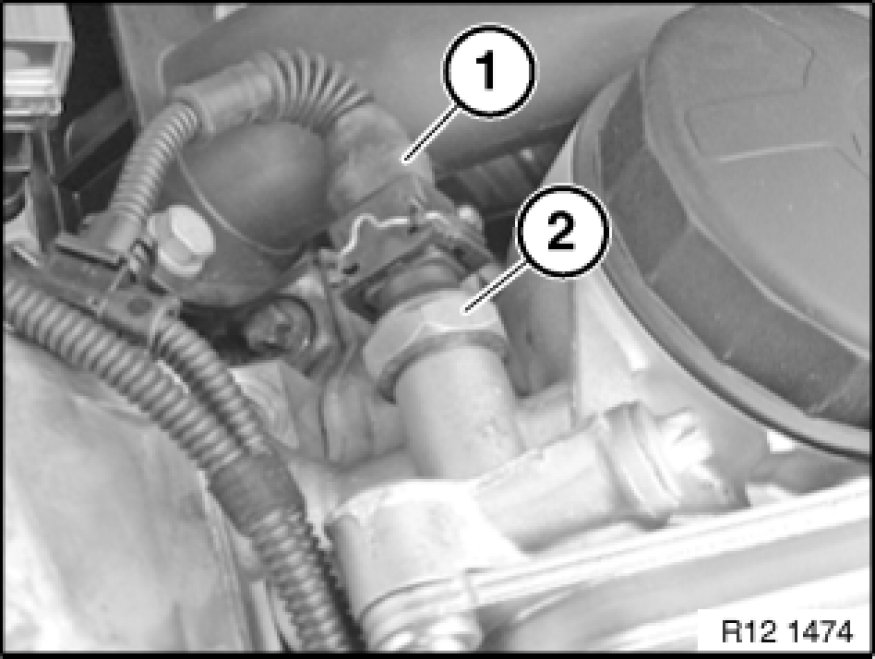

Unlock plug (1) and remove.
Release oil pressure sensor (2).
Tightening torque, 12 61 1AZ. Mechanical Specifications

Installation:
Check engine oil level, top up engine oil if necessary.
