Parking Brake Control Module: Service and Repair

34 41 295 Removing and installing control unit for parking brake

Important!
Read and comply with notes on protection against electrostatic damage (ESD protection).

Necessary preliminary tasks:
^ Remove luggage compartment trim on side panel on right

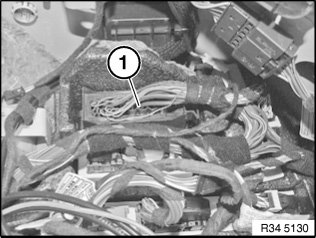

Remove control unit (1) from electronics box.

Disconnect plug connection.

Replacement:
^ Carry out programming/encoding of control units.
