Vehicle - Service Manual Revision, Lift Points
Bulletin 85-0-8Date Aug. '85
Ref. No.. 85-286-0
SUBJECT: VEHICLE LIFTING
MODELS AFFECTED: 1985 ELECTRA AND PARK AVENUE

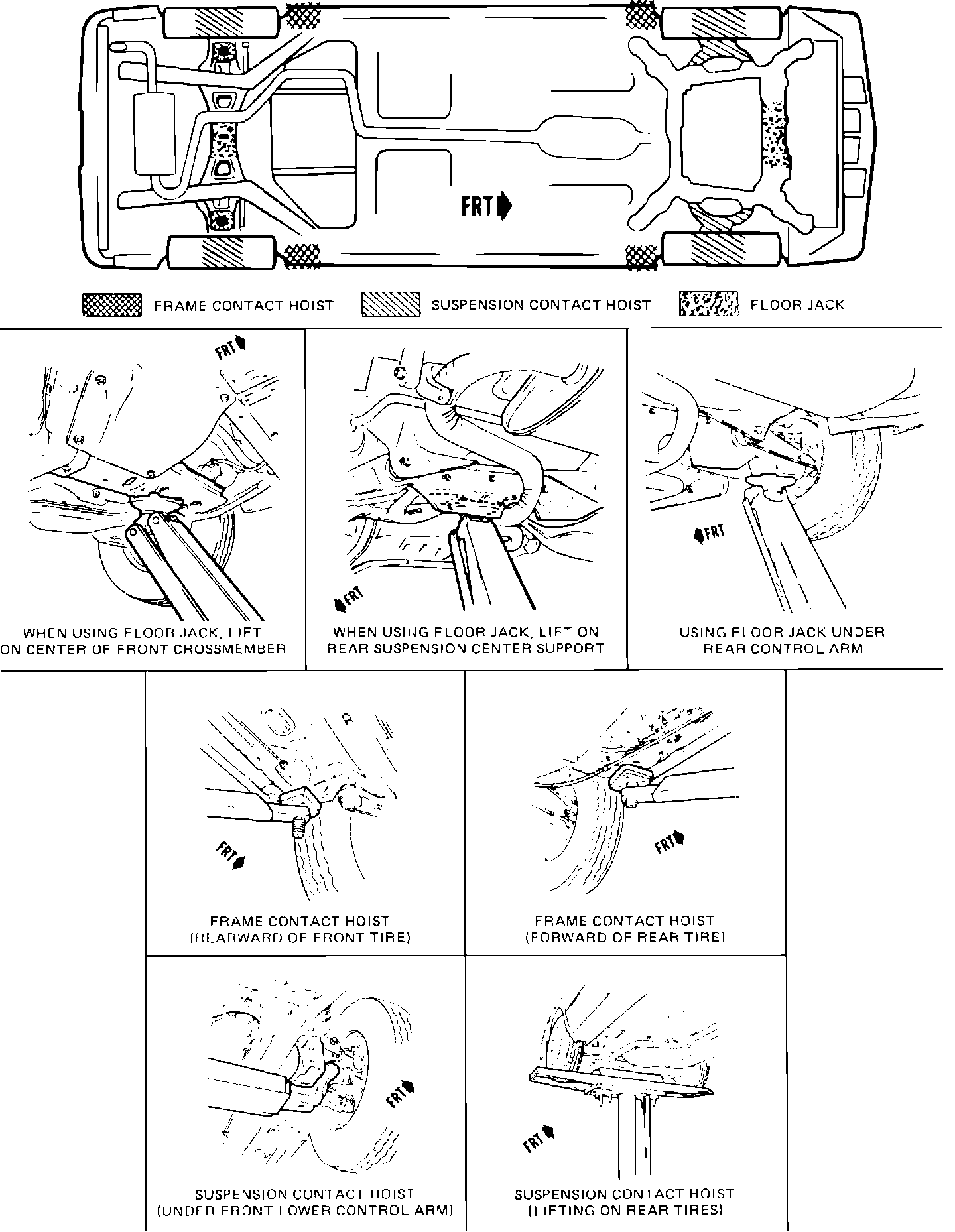

FIGURE OA-17A - "C SERIES" POINTS OF CONTACT:
For lifting a vehicle with equipment other than the original equipment jack, various lift points have been established and are recommended for the different car lines. These lift points were left out of the 1985 Chassis Service Manual for the Electra and Park Avenue. A revision that includes this information will be released shortly. The enclosed illustration indicates these lift points. Care should be exercised on the front lift points to keep frame (rocker) lifting equipment from contacting the inner fender.
