Engine Controls - Revised Chart A3, No Start

Bulletin: 92-6E-20

Date: Aug. '92

Ref.No.: 92-260-6E

Corp.Ref.No.: 216516

SUBJECT:
SERVICE MANUAL UPDATE - SECTION 6E3-A - REVISED CHART A-3

MODELS AFFECTED:
1991-92 REGALS WITH 3.1L (LHO) ENGINE

This Bulletin contains revisions to Section 6E3 of the 1991-92 Regal Service Manuals. The 3.1L (LHO) ENGINE CRANKS BUT WILL NOT RUN (Chart A-3) has been revised. These revised pages will replace the current Chart A-3 pages in the service manual.

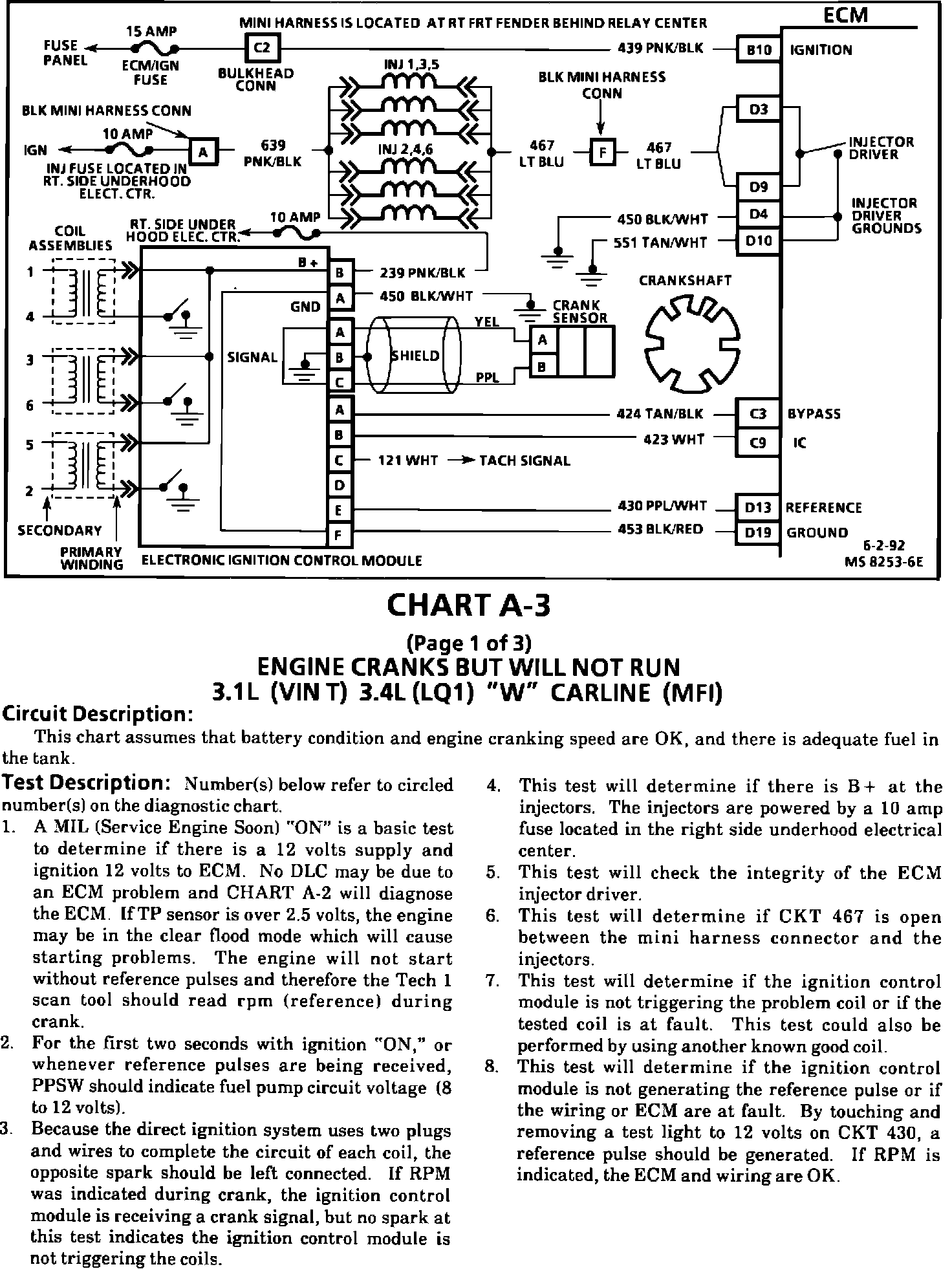

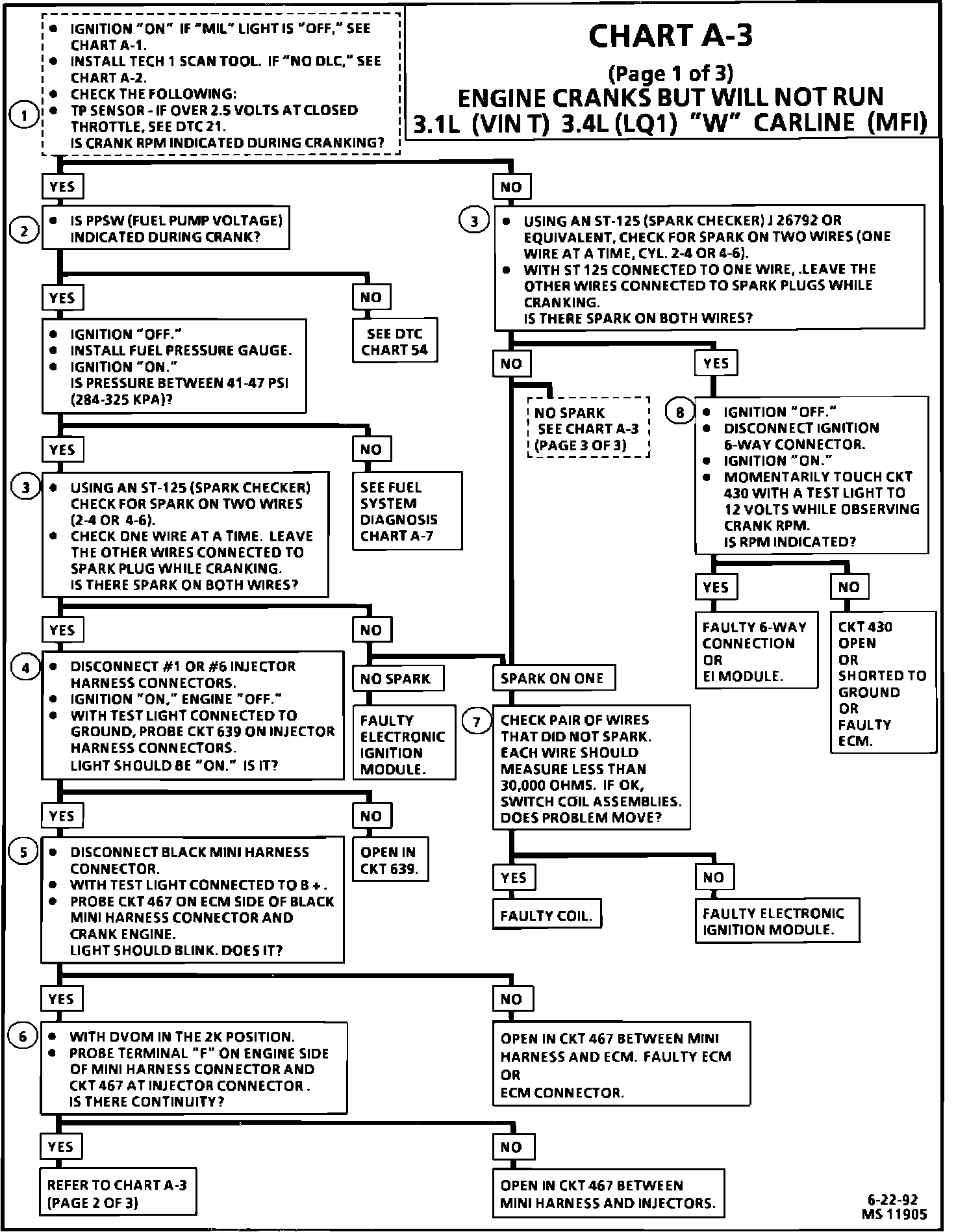

Page 1 of 3 Circuit Description, Test Description and Chart

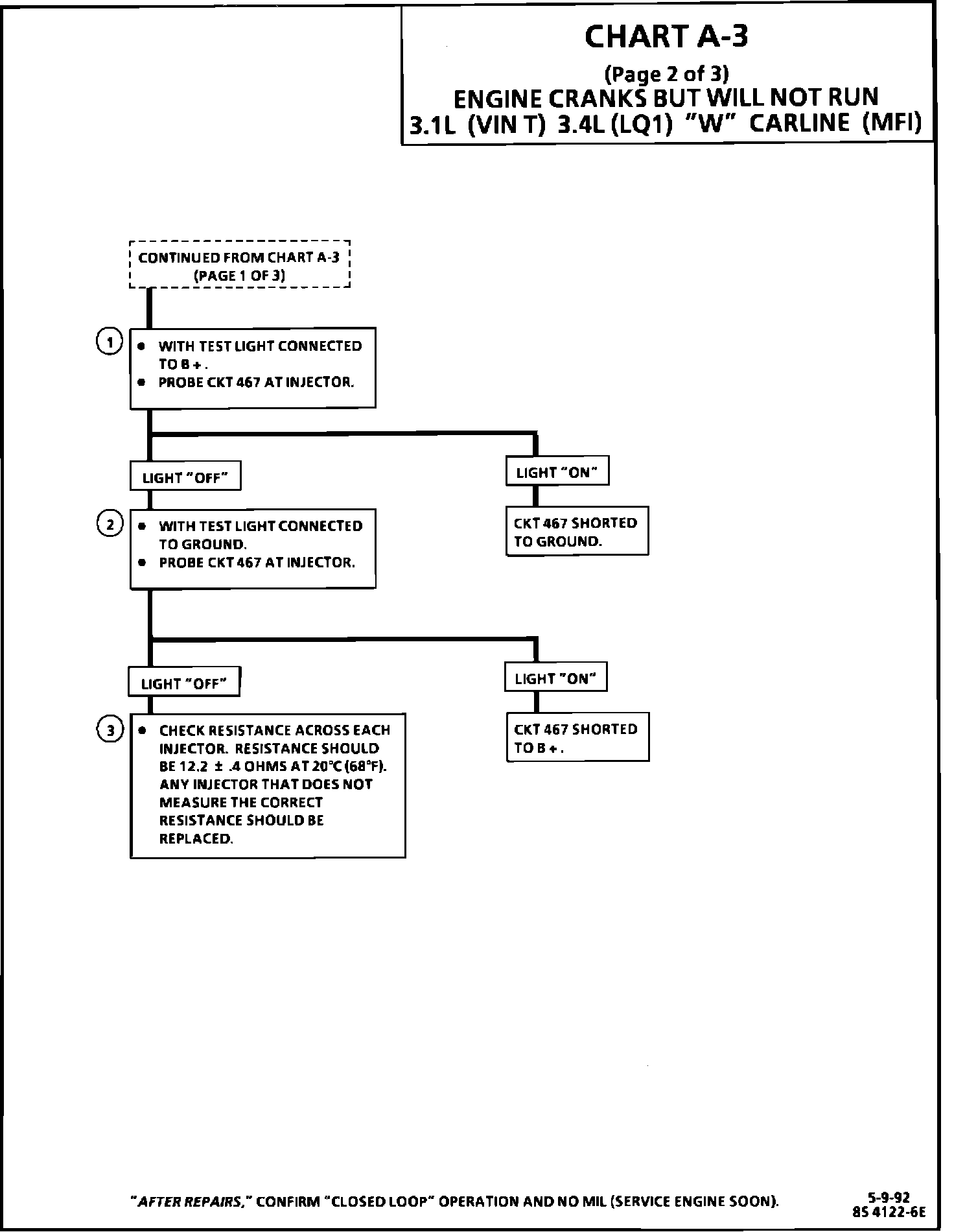

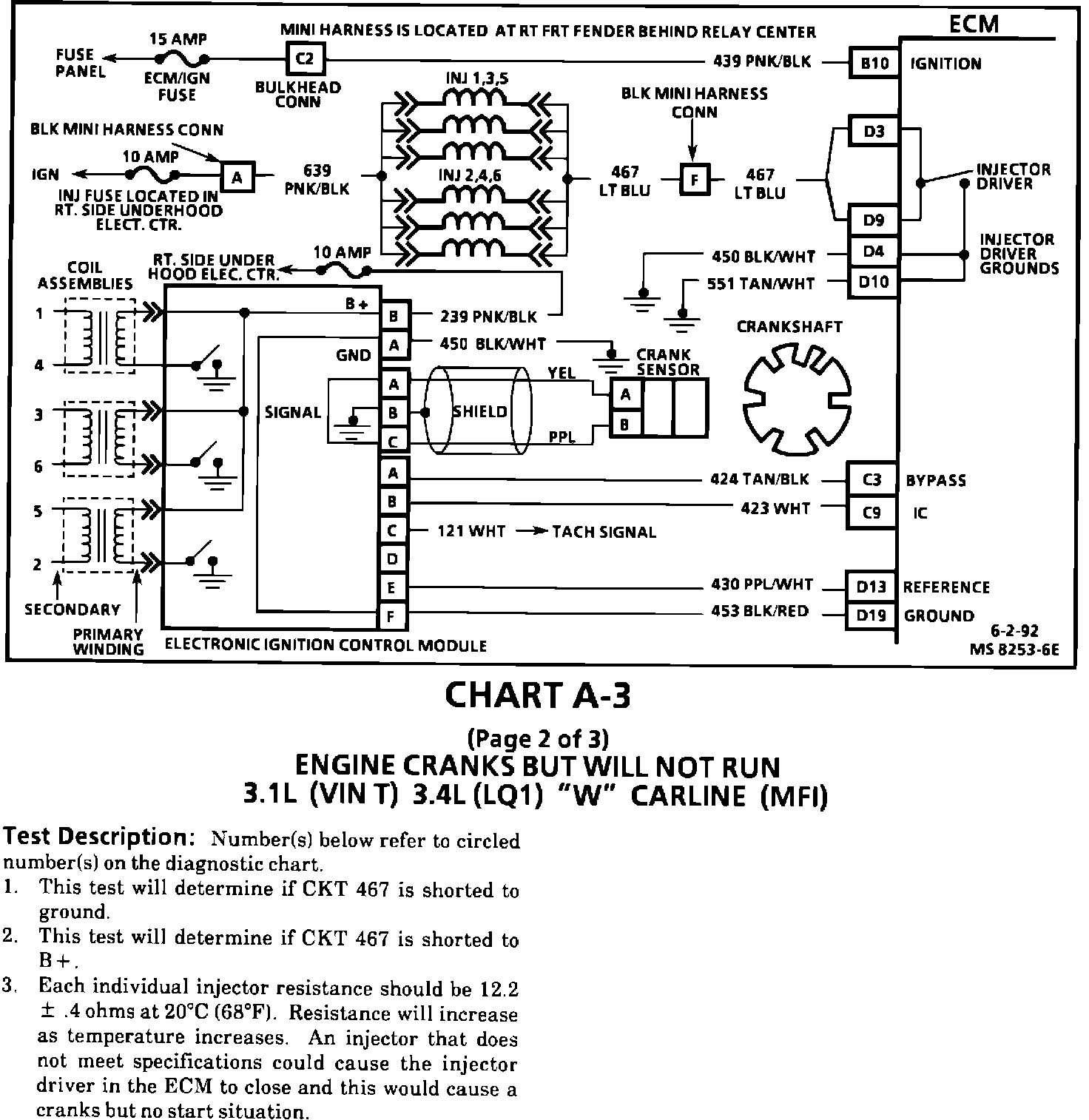

Page 2 of 3 Test Description and Chart

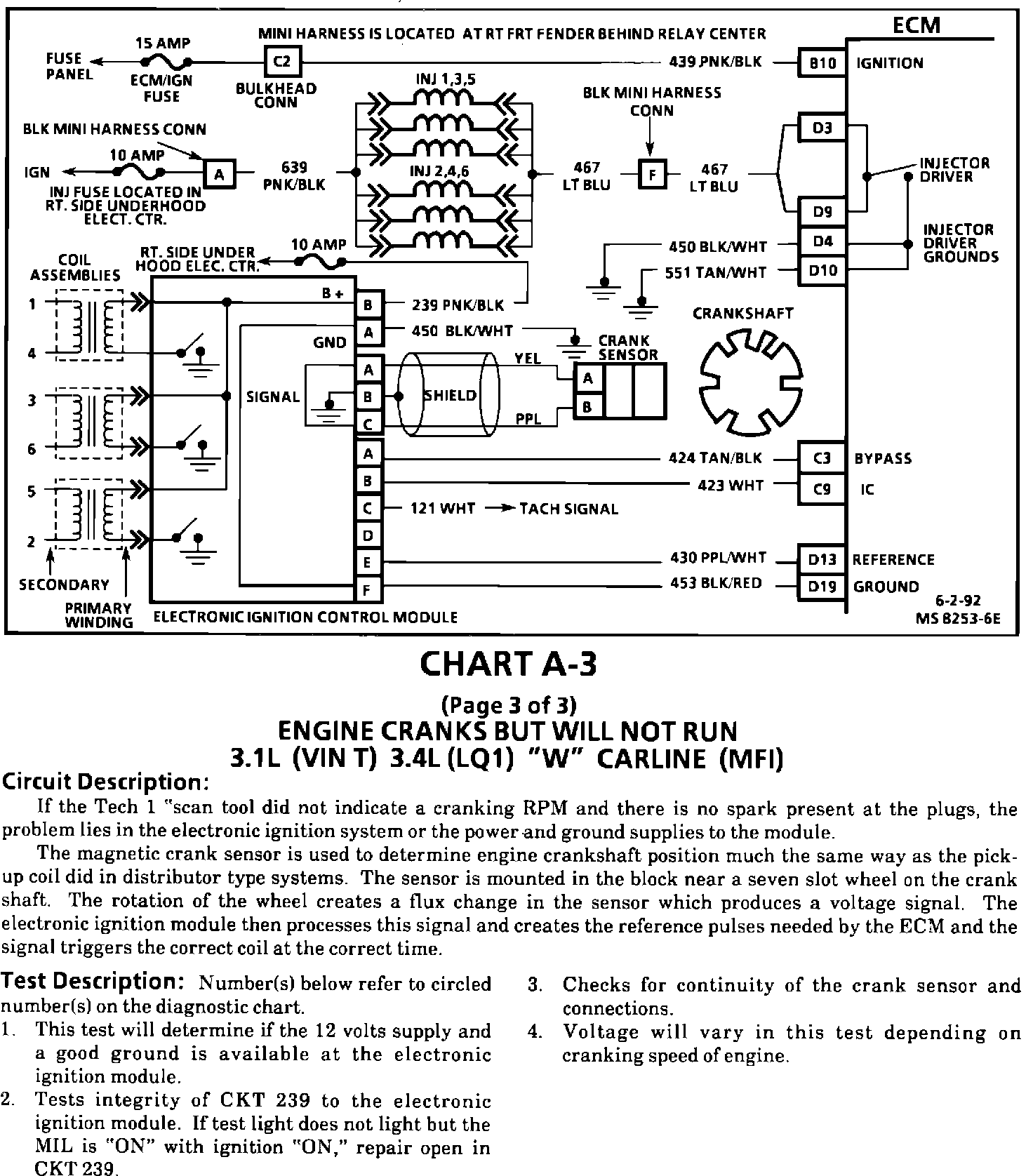

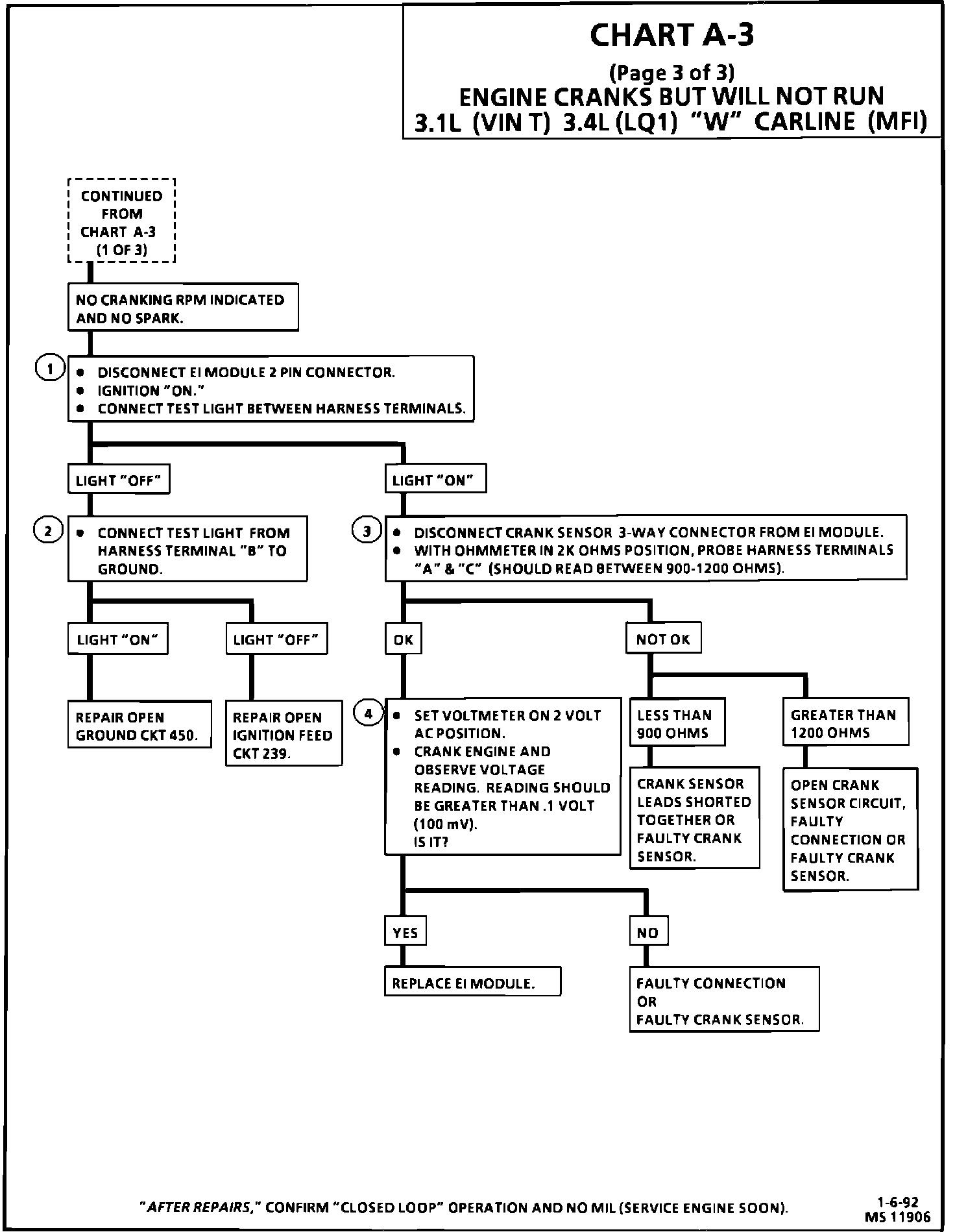

Page 3 of 3 Circuit Description, Test Description and Chart
