Cruise Control Cable Adjustment

Cruise Control Cable Adjustment

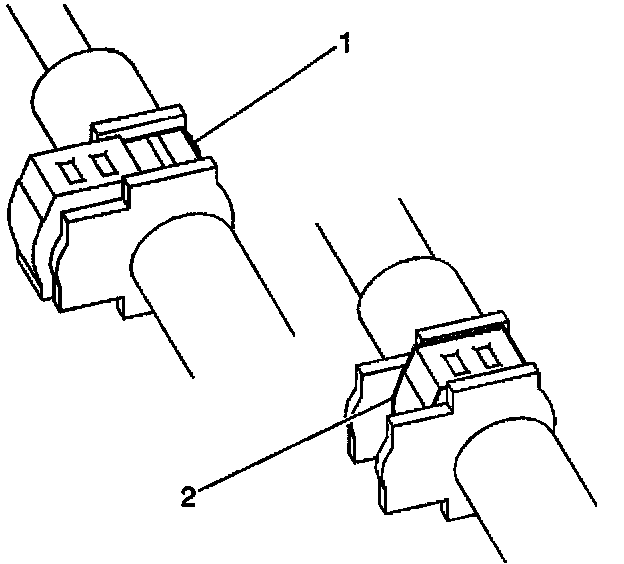

1. Spread the adjuster lock tabs and pull out the adjuster lock in order to disengage the cruise control cable adjuster lock (1).
2. Slide the cruise control cable adjuster forward, away from the module.
Without moving the throttle lever, remove as much cruise control cable slack as possible.
3. Push inward on the adjuster lock in order to engage the cruise control cable adjuster lock (2).
