EGR Pipe Replacement

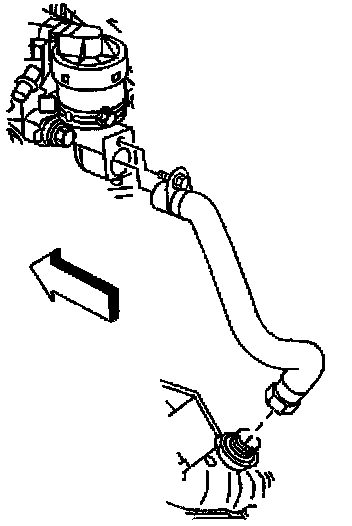

REMOVAL PROCEDURE
1. Turn OFF the ignition switch.
2. Remove the Bolt retaining the pipe assembly from the EGR Valve and carefully pull the pipe assembly back.
3. Remove the gasket.
4. Unscrew the EGR Pipe Assembly Nut from the Exhaust Manifold.
5. Remove the EGR Pipe.

INSTALLATION PROCEDURE
1. Install the EGR Valve Pipe to the Exhaust Manifold.
2. Install a new gasket.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the EGR Pipe Bolt to the EGR valve.

Tighten
Tighten the nuts to 30 N.m (22 lb ft).
