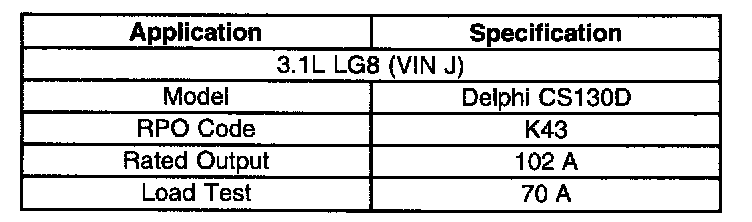

Generator Assembly

The generator assembly is mounted to the front of the engine on the passenger side of the vehicle. The CS-type generator uses an internal regulator which features built-in fault detection. The generator used on this vehicle, is not to be disassembled for service.

For more information regarding the Charging System, refer to Charging System Description, and Charging System Circuit Description in Engine Electrical.
