Keyless Entry Receiver: Service and Repair

REMOVAL PROCEDURE
1. Remove rear shelf trim from inside of rear storage compartment.
2. Push on the retainer at the rear edge of the bracket, and slide the module towards the driver's side.
3. Disconnect the electrical connectors from the modules on the bracket.

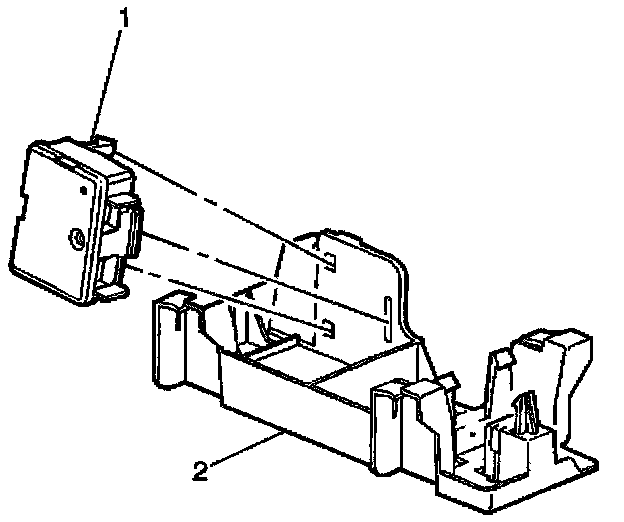

4. Remove the RFA module (1) from the bracket (2).

INSTALLATION PROCEDURE
1. Slide the RFA module (1) into the bracket (2).
2. Connect all electrical connectors.
3. Install the bracket to the rear shelf.
4. Install the rear storage compartment trim.
5. Program the RFA module. Programming and Relearning
