Console Front Trim Plate Replacement

Console Front Trim Plate Replacement

Removal Procedure

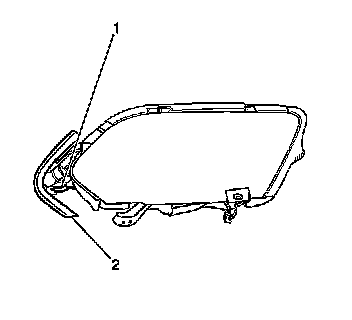

1. Pull outward on the front trim panel in order to release the retaining clips.
2. Disconnect the electrical connector (1).
3. Remove the trim panel (2).

Installation Procedure

1. Connect the electrical connector (1).
2. Align the retaining clips on the trim panel (2) with the console.
3. Push the trim panel inward in order to secure the retaining clips.
