Console Replacement



Console Replacement

Removal Procedure

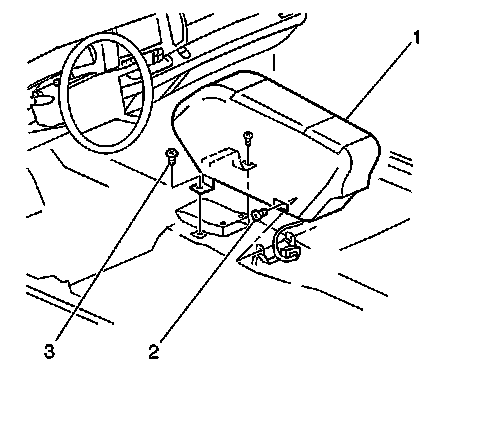

1. Remove the 2 front side fasteners (3) that connect the console assembly to the floor.
2. Remove the 2 rear side fasteners (2) that connect the console assembly to the floor.
3. Lift the console assembly (1).
4. Disconnect the electrical connector.
5. Remove the console assembly (1).

Installation Procedure




1. Connect the electrical connector.
2. Align the console assembly (1) to the floor mounting holes.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the fasteners (2,3) to the console assembly.

Tighten the fasteners to 2 N.m (18 lb in).
