Roof Console Replacement



Roof Console Replacement

Removal Procedure






Important: Do not let the overhead console hang from the wire harness.

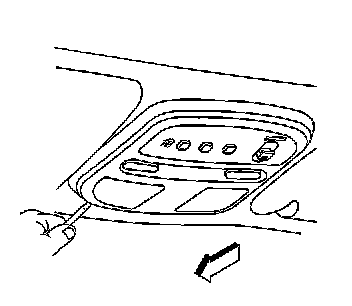

1. Carefully pull down on the overhead console in order to release the retainer clips.
2. Disconnect the wire electrical connector.
3. Remove the overhead console.

Installation Procedure




1. Connect the wire harness.
2. Install the overhead console into the opening in the headliner.
3. Push in on the overhead console in order to engage the retainer clips.
