Front Seat Back Frame Replacement



Front Seat Back Frame Replacement

Removal Procedure

Caution: Refer to SIR Handling Caution in Service Precautions.

1. Disable the SIR system. Refer to Disabling the SIR System in Restraint Systems.
2. Put the seat back in the full upright position..
3. Remove the seat back cover and pad.
4. Remove the lumbar.

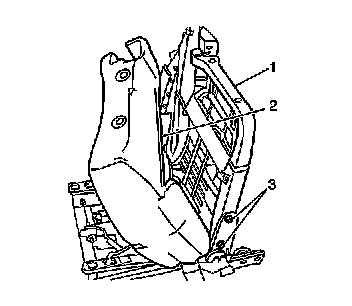

5. Remove the fasteners (3) retaining the seat back frame (1) to the recliner.
6. Lift straight up on the seat back frame (1) in order to disengage the seat back frame from the recliner.

Installation Procedure




1. Slide the seat back frame (1) straight down into recliner.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the seat back frame fasteners (3).

Tighten the seat back frame fasteners (3) to 28 N.m (21 lb ft).

3. Install the lumbar.
4. Install the seat back cover and pad.
5. Enable the SIR system. Refer to Enabling the SIR System in Restraint Systems.
