Fuel Injector Sight Shield Replacement

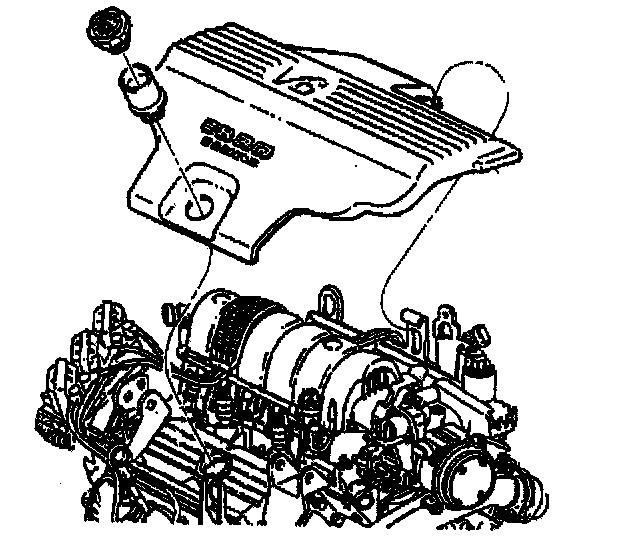

Removal Procedure





1. Remove oil filler neck.
2. Lift the front of the shield up and pull towards the front of the vehicle.
3. Remove fuel injector sight shield.

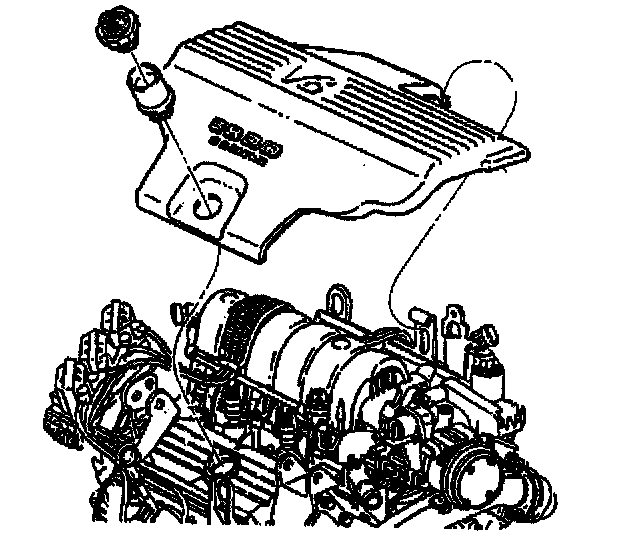

Installation Procedure





1. Align the extension on the rear edge of the shield to the bracket on the rear of the engine.
2. Push the shield rearward and push down to align it with the oil filler hole.
3. Install oil filler neck.
