Compressor Clutch Relay: Service and Repair
REMOVAL PROCEDURE 1.

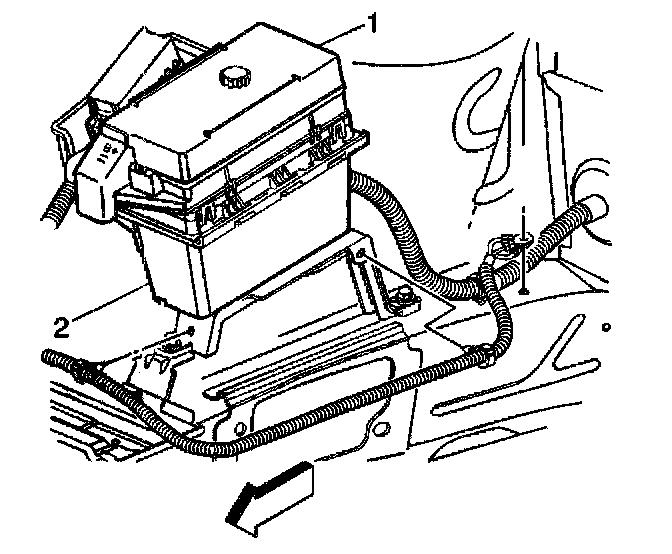

Remove the cover (1) from the engine compartment fuse block (2).
2.
Remove the A/C compressor relay from the engine compartment fuse block.
INSTALLATION PROCEDURE 1.
Install the A/C compressor relay in to the engine compartment fuse block.
2.
Install the cover (1) to the engine compartment fuse block (2).
