Passenger Climate Control Switch Replacement

Passenger Climate Control Switch Replacement




REMOVAL PROCEDURE

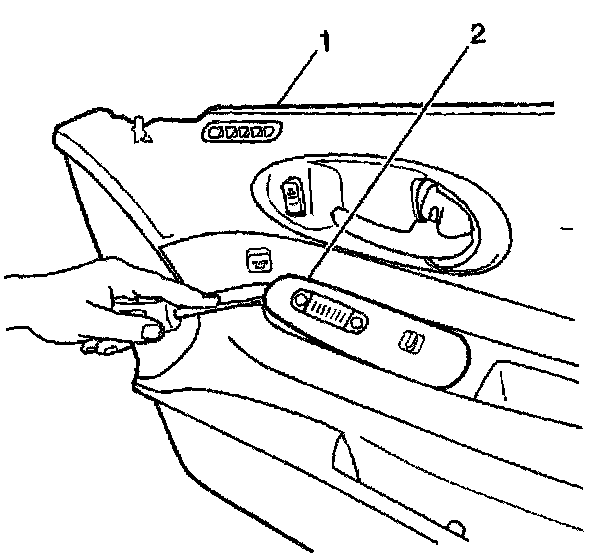

1. Insert a flat bladed tool under the forward edge of the passenger door switch plate (2).
2. Gently pry the switch plate up and away from the door trim panel.
3. Slide the switch plate forward to remove.
4. Disconnect the electrical connectors.

INSTALLATION PROCEDURE
1. Connect the electrical connectors.
2. Install the rearward end of the switch plate down into the door trim panel opening to engage the rear tabs.
Snap the forward end of the switch plate down into the door trim panel.
