Heater Temperature Sensor Replacement
HVAC System - AutomaticREMOVAL PROCEDURE 1.
Remove the sound insulator.
2.

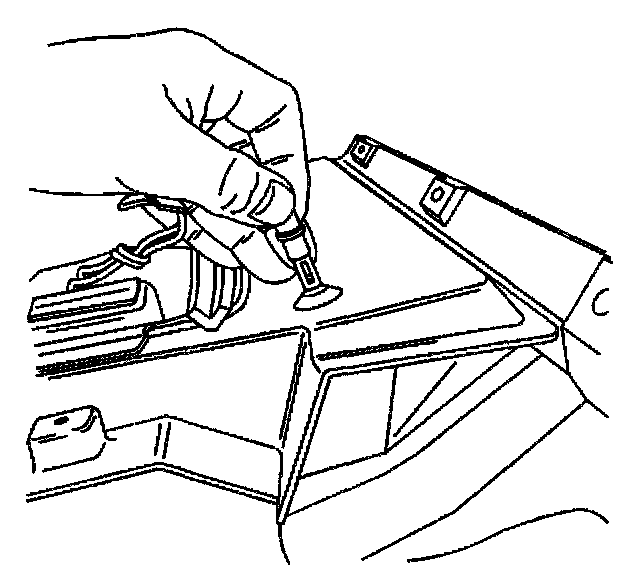

Disconnect the electrical connector from the sensor.
INSTALLATION PROCEDURE 1.
Connect the electrical connector to the sensor.
2.
Install the sensor in the sound insulator.
3.
Install the sound insulator.
