Windshield Washer Pump: Service and Repair

REMOVAL PROCEDURE




1. Drain the washer solvent container.

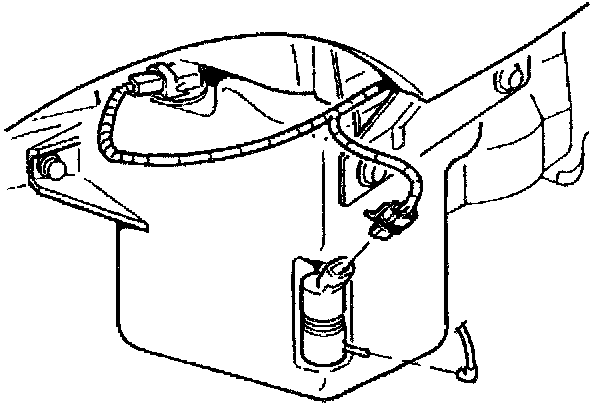

2. Remove the right front wheelhouse extension.
3. Disconnect the washer hose from the washer pump.
4. Disconnect the electrical connector from the washer pump.

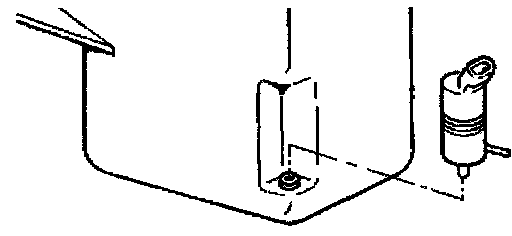

5. Remove the washer pump from the washer solvent container.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.





1. Install the washer pump in the washer solvent container.




2. Connect the electrical connector to the washer pump.
3. Connect the washer hose to the washer pump.
4. Install the right front wheelhouse extension.
5. Fill the washer solvent container.
