Splash Guard: Service and Repair

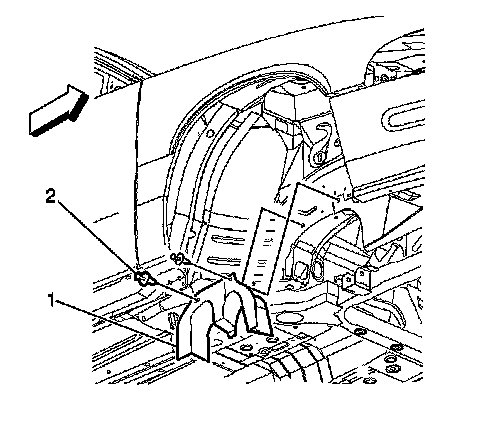

Engine Splash Shield Replacement Removal Procedure 1.
Remove the push-in retainers (2) from the engine splash shield (1).
2.
Remove the engine splash shield (1).
Installation Procedure 1.
Install the engine splash shield (1).
2.
Install the push-in retainers (2) to the engine splash shield (1).
