Inside Air Temperature Sensor Replacement
REMOVAL PROCEDURE 1.
Remove the left cluster trim plate.
2.

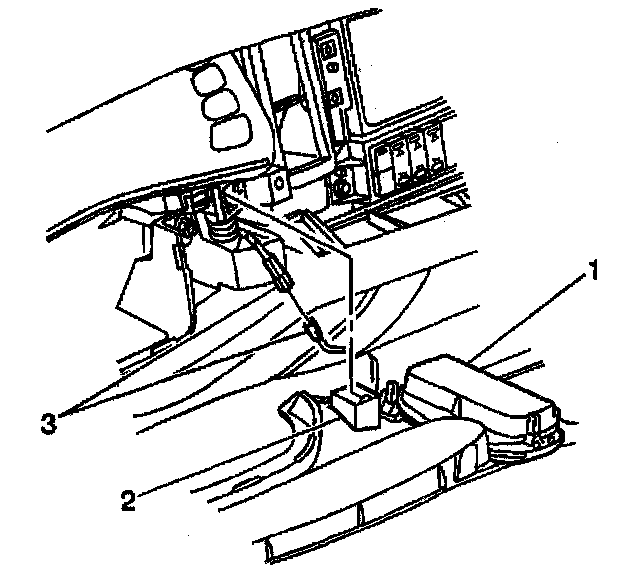

Disconnect the electrical connector (3) from the sensor (2).
3.
Remove the
inside air temperature sensor from the trim plate.
INSTALLATION PROCEDURE 1.
Install the
inside air temperature sensor to the I/P cluster trim plate.
2.
Connect the electrical connector (3) to the sensor (2).
3.
Install the left cluster trim plate.
