Compressor Clutch Relay: Service and Repair

REMOVAL PROCEDURE




1. Turn OFF the ignition.
2. Remove the negative battery cable.

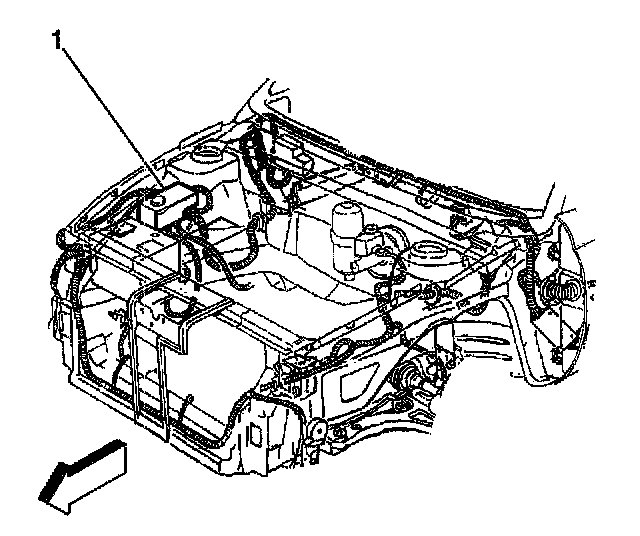

3. Remove the underhood Bussed Electrical Center (BEC) cover (1).

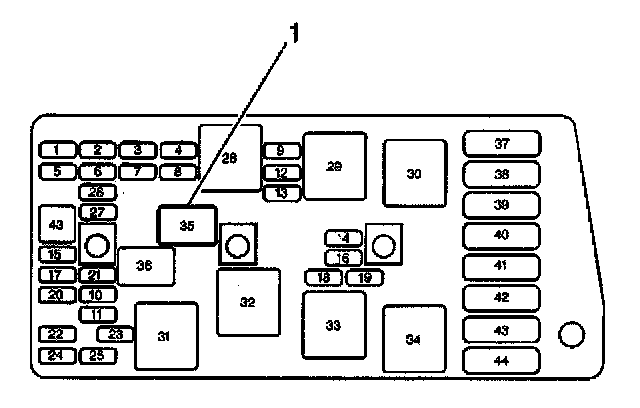

4. Remove the A/C clutch relay (1) from the underhood Bussed Electrical Center (BEC).

INSTALLATION PROCEDURE




1. Install the fuel A/C clutch relay (1) into the underhood Bussed Electrical Center (BEC).




2. Install the underhood Bussed Electrical Center (BEC) cover (1).
3. Install the negative battery cable.
