Control Assembly Replacement - Passenger
REMOVAL PROCEDURE 1.
Remove the right IP trim plate.
2.

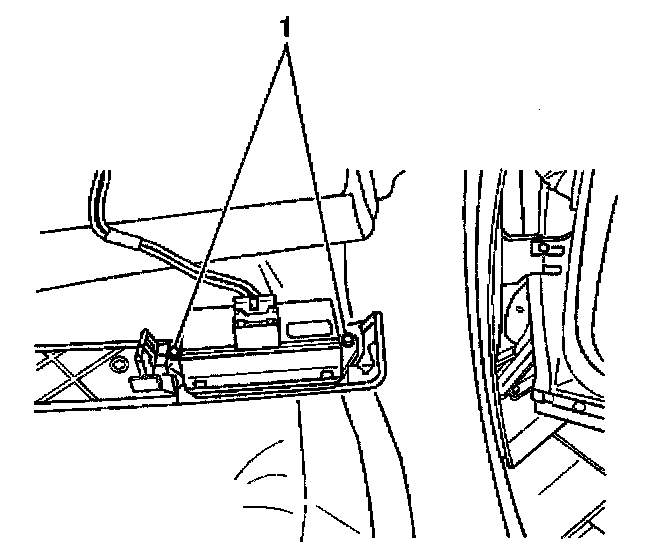

Remove the two retaining screws (1) from the passenger control switch and remove.
INSTALLATION PROCEDURE NOTE: Refer to Fastener Notice in Service Precautions.
1.
Install the passenger control and screws (1) into the trim plate.
Tighten Tighten the screws to
1.4 N.m (12 lb in). 2.
Install the IP trim plate.
