Heater Core Temperature Sensor / Switch: Service and Repair

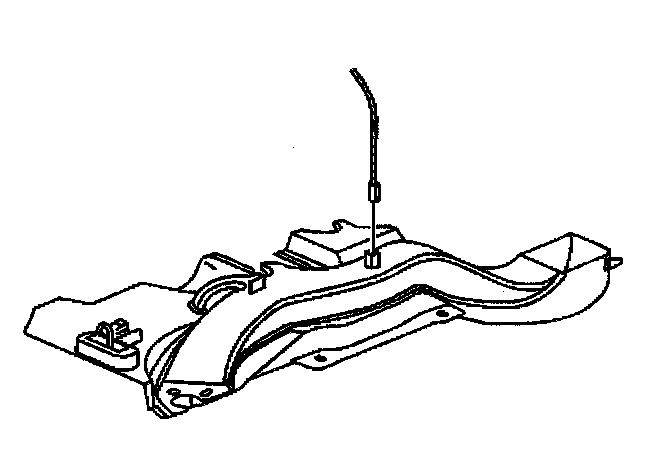

REMOVAL PROCEDURE 1.
Remove the sound insulator.
2.
Disconnect the electrical connector from the sensor.
3.
Remove the sensor.
INSTALLATION PROCEDURE 1.
Install the sensor.
2.
Connect the electrical connector to the sensor.
3.
Install the sound insulator.
