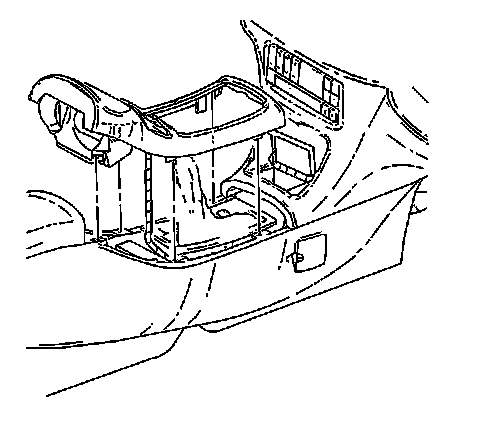

Console Front Trim Plate Replacement

Console Front Trim Plate Replacement

Removal Procedure




1. Remove the front floor console trim plate starting at the front and working back, pulling the front floor console trim plate upward in order to release the tabs from the retainers.
2. Disconnect the electrical connectors from the traction control switch, if equipped.

3. Remove the front floor console trim plate from the vehicle.

Installation Procedure




1. Connect the electrical connectors to the traction control switch.
2. Position the front floor console trim plate tabs to the retainers in the front floor console.
3. Install the front floor console trim plate pressing down until the tabs are fully seated.
