Front Floor Console Storage Tray Replacement

Front Floor Console Storage Tray Replacement

Removal Procedure

1. Remove the front floor console from the vehicle. Refer to Front Floor Console Replacement (Front Floor Console Replacement)

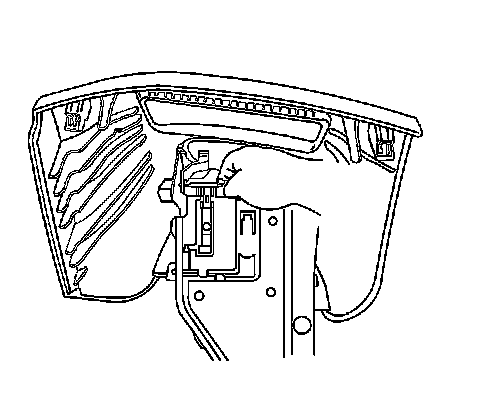

2. Remove the screws from the storage tray door.

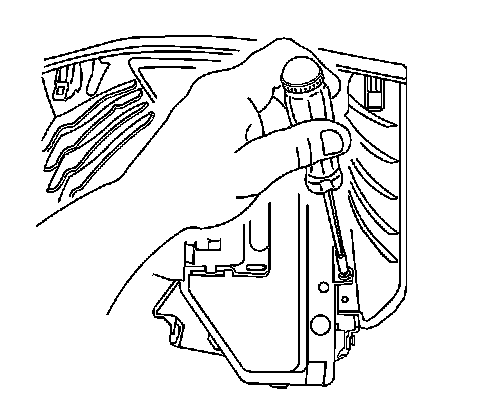

3. Remove the screws from the storage tray base.

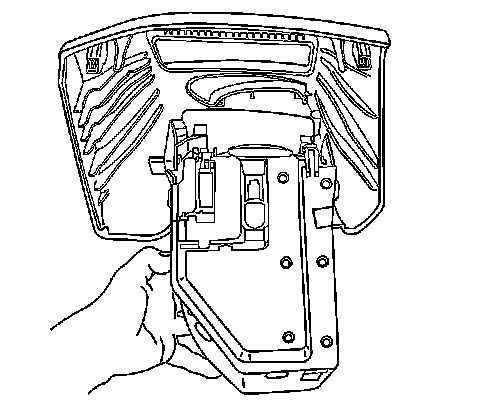

4. Remove the storage tray from the front floor console by pulling out.

Installation Procedure




1. Position the storage tray to the front floor console.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws to the storage tray door.

Tighten the front floor console tray screws to 2 Nm (18 lb in).




3. Install the screws to the storage tray base.

Tighten the storage tray base screws to 2 Nm (18 lb in).

4. Install the front floor console to the vehicle. Refer to Front Floor Console Replacement (Front Floor Console Replacement)
