Power Seat Switch: Service and Repair




Power Seat Switch Replacement

Removal Procedure

1. Remove the front seat cushion outer trim panel. Refer to Power Seat Riser Trim Cover Replacement (Power Seat Riser Trim Cover Replacement).

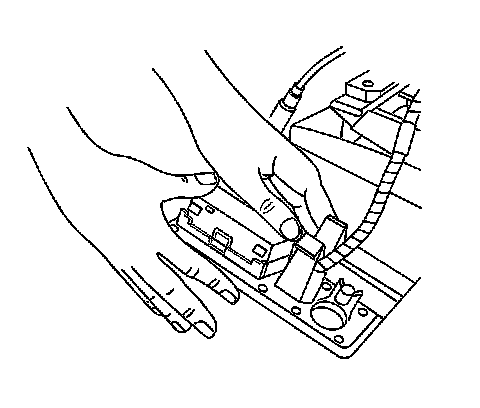

2. Remove the screws from the seat switch to the trim panel.

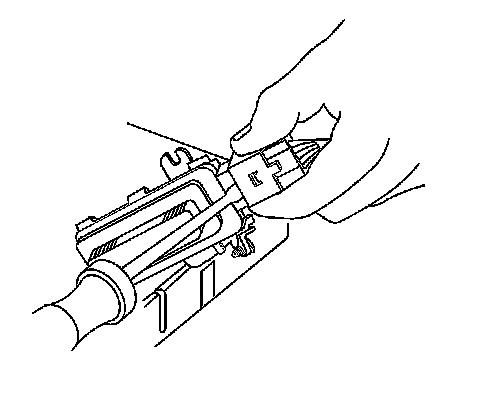

3. Disconnect the electrical connector from the power front seat switch.

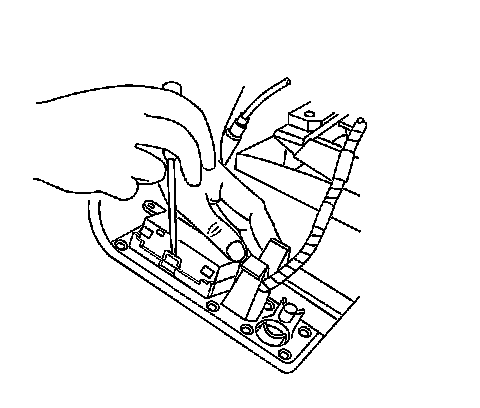

4. Remove the power front seat switch from the vehicle.

Installation Procedure

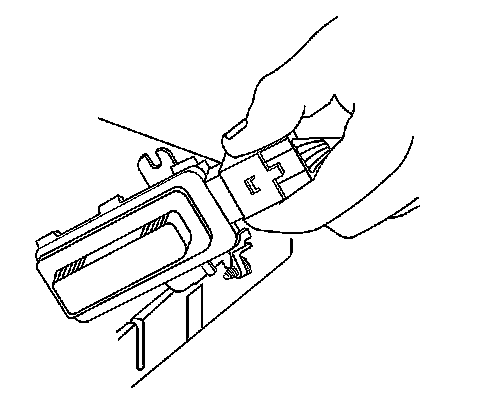

1. Connect the electrical connector to the power front seat switch.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws to the seat switch to the trim panel.

Tighten the seat switch to the trim panel screws to 3 Nm (27 lb in).

3. Install the front seat cushion outer trim panel. Refer to Power Seat Riser Trim Cover Replacement (Power Seat Riser Trim Cover Replacement).
