Seat Temperature Switch: Service and Repair

Front Seat Heater Switch Replacement

Removal Procedure

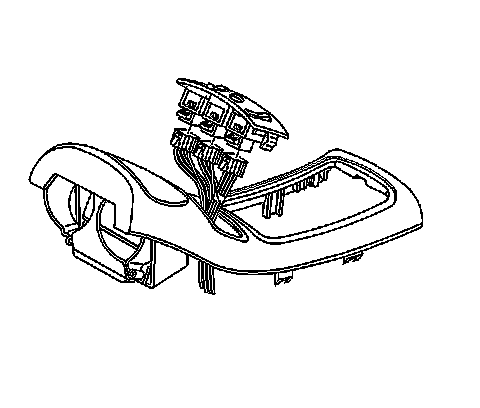

1. Remove the center console switch assembly by pressing in the clips on each end and lifting the assembly out.
2. Remove the electrical connector from the right or left heater switch.
3. Remove the heater seat switch from the switch assembly.

Installation Procedure




1. Install the seat heater switch in the assembly.
2. Install the electrical connector to the seat heater switch.
3. Align the switch assembly to the console trim plate and snap into position to secure.
