Lumbar Switch Replacement




Lumbar Switch Replacement

Removal Procedure




1. Remove the seat riser trim panel. Refer to Power Seat Riser Trim Cover Replacement (Power Seat Riser Trim Cover Replacement).

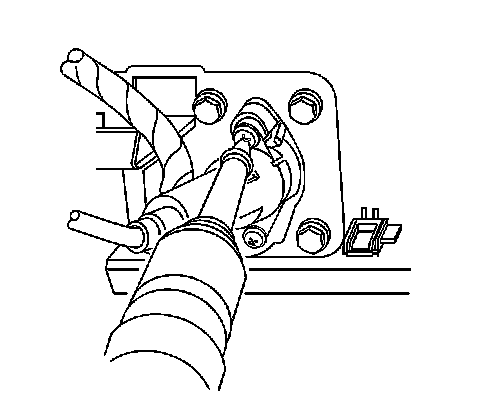

2. Remove the screws from the lumbar control switch.
3. Remove the lumbar control switch from the seat cushion.

Installation Procedure




1. Position the lumbar control switch to the seat cushion.

Notice: Refer to Fastener Notice in Cautions and Notices.

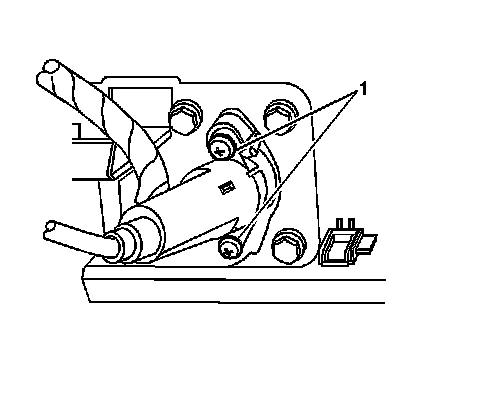

2. Install the screws(1) to the lumbar control switch.

Tighten the lumbar control switch screws to 2 Nm (18 lb in).

3. Install the outer seat cushion trim panel. Refer to Power Seat Riser Trim Cover Replacement (Power Seat Riser Trim Cover Replacement).
