Air Distribution Duct Replacement

REMOVAL PROCEDURE




1. Remove the instrument panel.

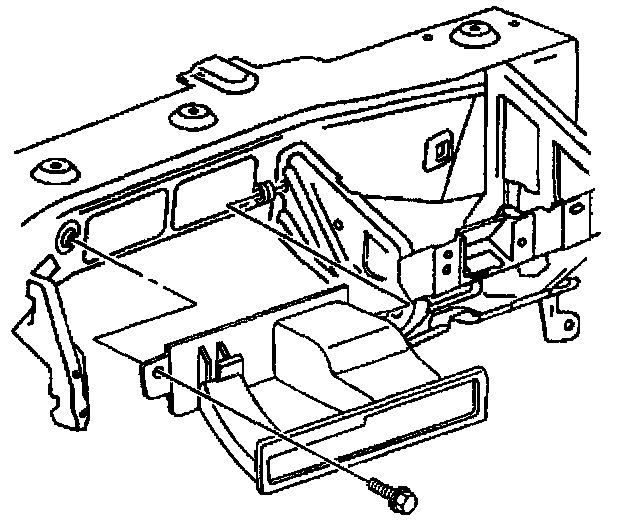

2. Remove the screw and the center air duct.

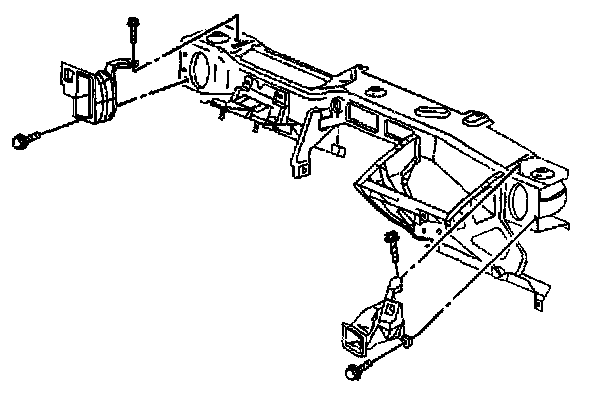

3. Remove the screws and the side air ducts.

INSTALLATION PROCEDURE




1. Install the center air distribution duct.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the mounting screw.

Tighten
Tighten the air distribution duct screws to 1.5 N.m (13 lb in).




3. Install the side air distribution ducts.
4. Install the mounting screws.

Tighten
Tighten the air distribution duct screws to 1.5 N.m (13 lb in).

5. Install the instrument panel.
