Fog/Driving Lamp Switch: Service and Repair




REMOVAL PROCEDURE
1. Remove the LH instrument panel insulator.
2. Remove the steering column opening filler panel
3. Disconnect the electrical connector from the fog lamp switch.

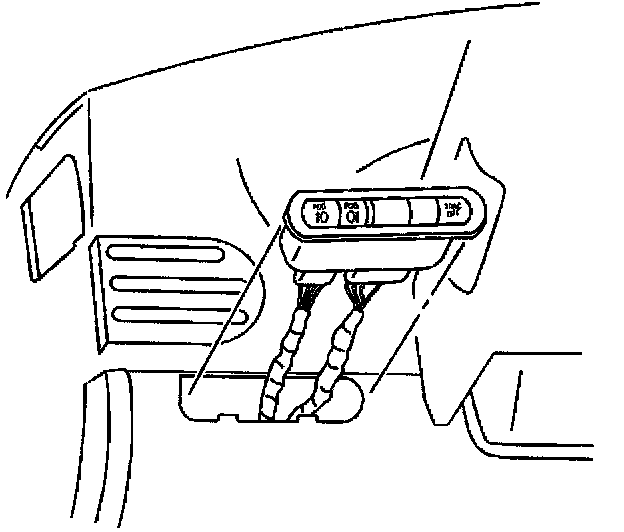

4. Press to release the switch retaining tabs and remove the fog lamp switch from the steering column filler panel.

INSTALLATION PROCEDURE
1. Position the fog lamp switch to the steering column filler panel and press into place to secure.
2. Connect the electrical connector to the fog lamp switch.
3. Install the steering column opening filler panel.
4. Install the LH instrument panel insulator.
