Horn: Service and Repair

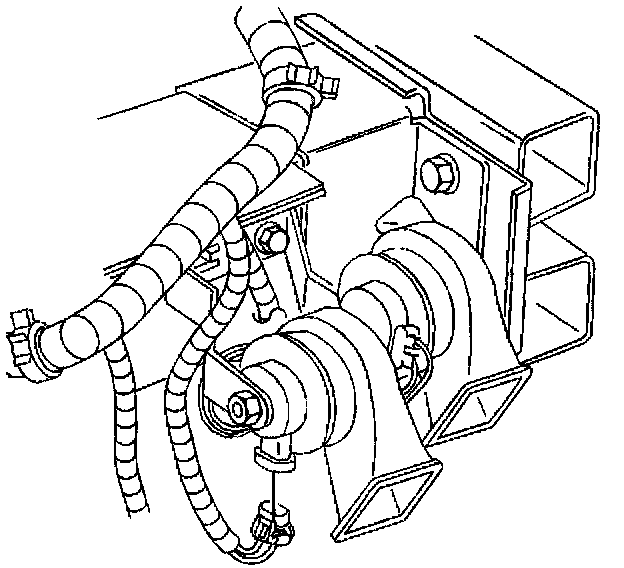

REMOVAL PROCEDURE




1. Open and support the hood.
2. Remove the RH headlamp assembly.
3. Disconnect the electrical connector from the horn assembly.




4. Remove the horn assembly mounting bolt.
5. Remove the horn assembly.

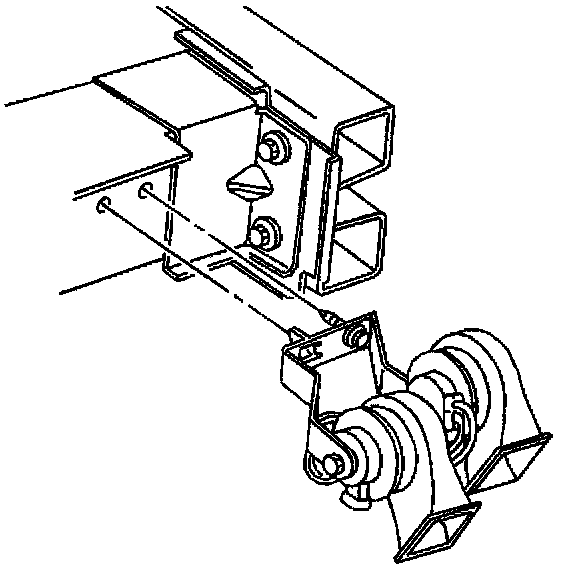

INSTALLATION PROCEDURE




1. Position the horn assembly to the frame rail extension; insert the horn anti-rotation tab into the slot on the frame rail.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the horn assembly mounting bolt.

Tighten
Tighten the horn assembly mounting bolt to 15 N.m (11 lb ft).




3. Connect the electrical connector to the horn assembly.
4. Install the RH headlamp assembly.
5. Close the hood.
