149. Engine Prelubing



Engine Prelubing

Tools Required

* J-21867-6 Oil Pressure Adapter Fitting
* J 45299 Engine Preluber

Important: A constant and continuous flow of clean engine oil is required in order to properly prime the engine. Be sure to use an approved engine oil as specified in the owners manual.

1. Ensure a NEW oil filter is installed.

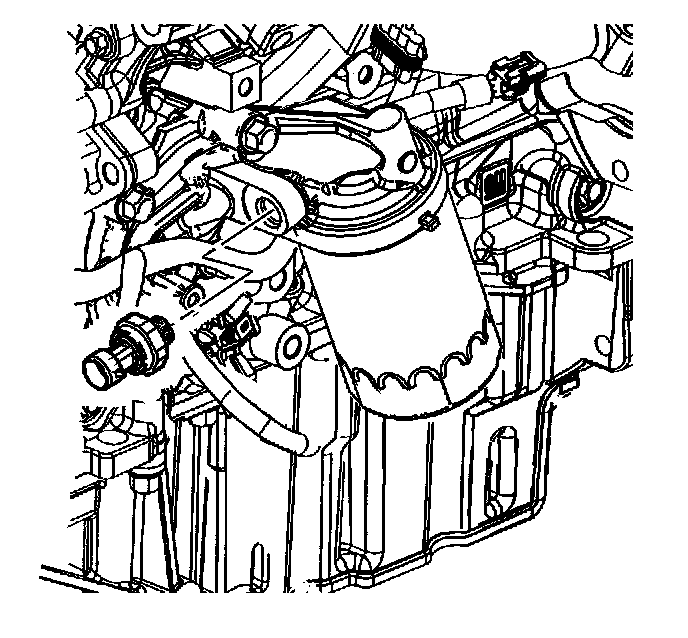

2. Remove the oil pressure sending unit from the oil filter adapter.
3. Install the J-21867-6.




4. Install the flexible hose to the adapter and open the valve.
5. Pump the handle on the J 45299 in order to flow a minimum of 1-1.9 liters (1-2 quarts) of engine oil. Observe the flow of engine oil through the flexible hose and into the engine assembly.
6. Close the valve and remove the flexible hose and adapter from the engine.

Notice: Refer to Fastener Notice.

7. Install the oil pressure sending unit.

Tighten the oil pressure sending unit to 20 N.m (15 lb ft).

8. Top-off the engine oil to the proper level.
