Too Hot in Vehicle

Too Hot in Vehicle

Test Description

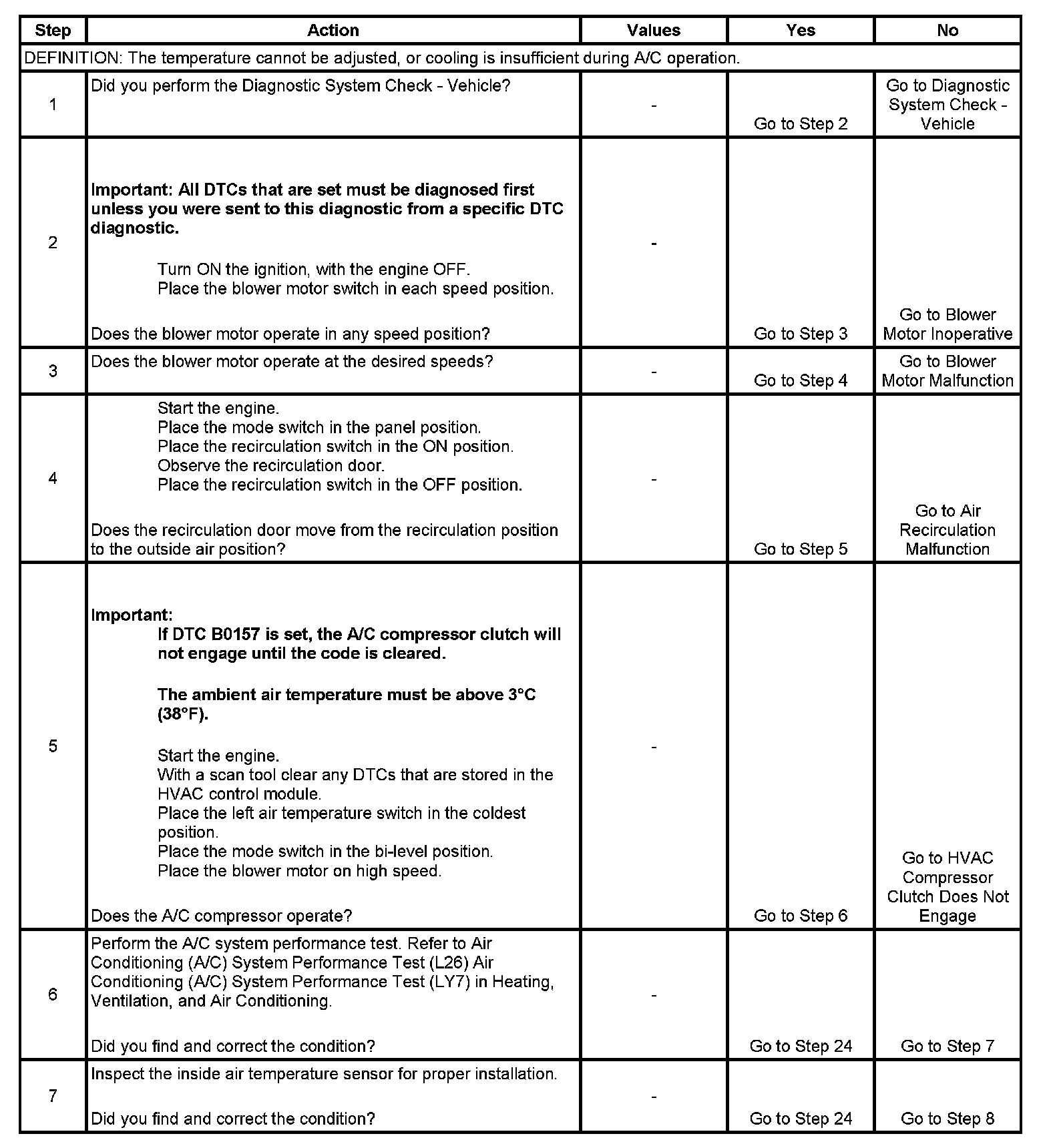

Step 1 - Step 7:

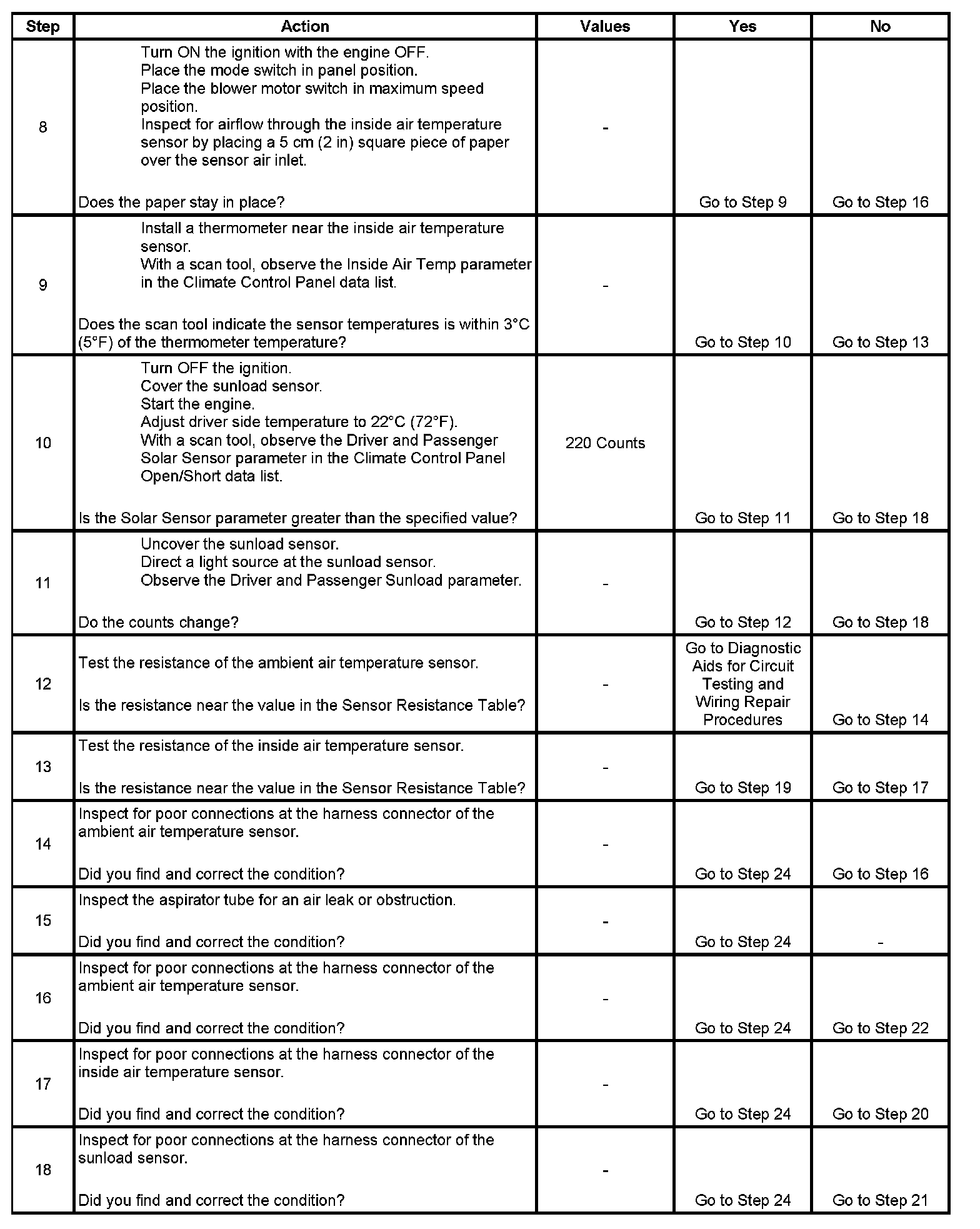

Step 8 - Step 18:

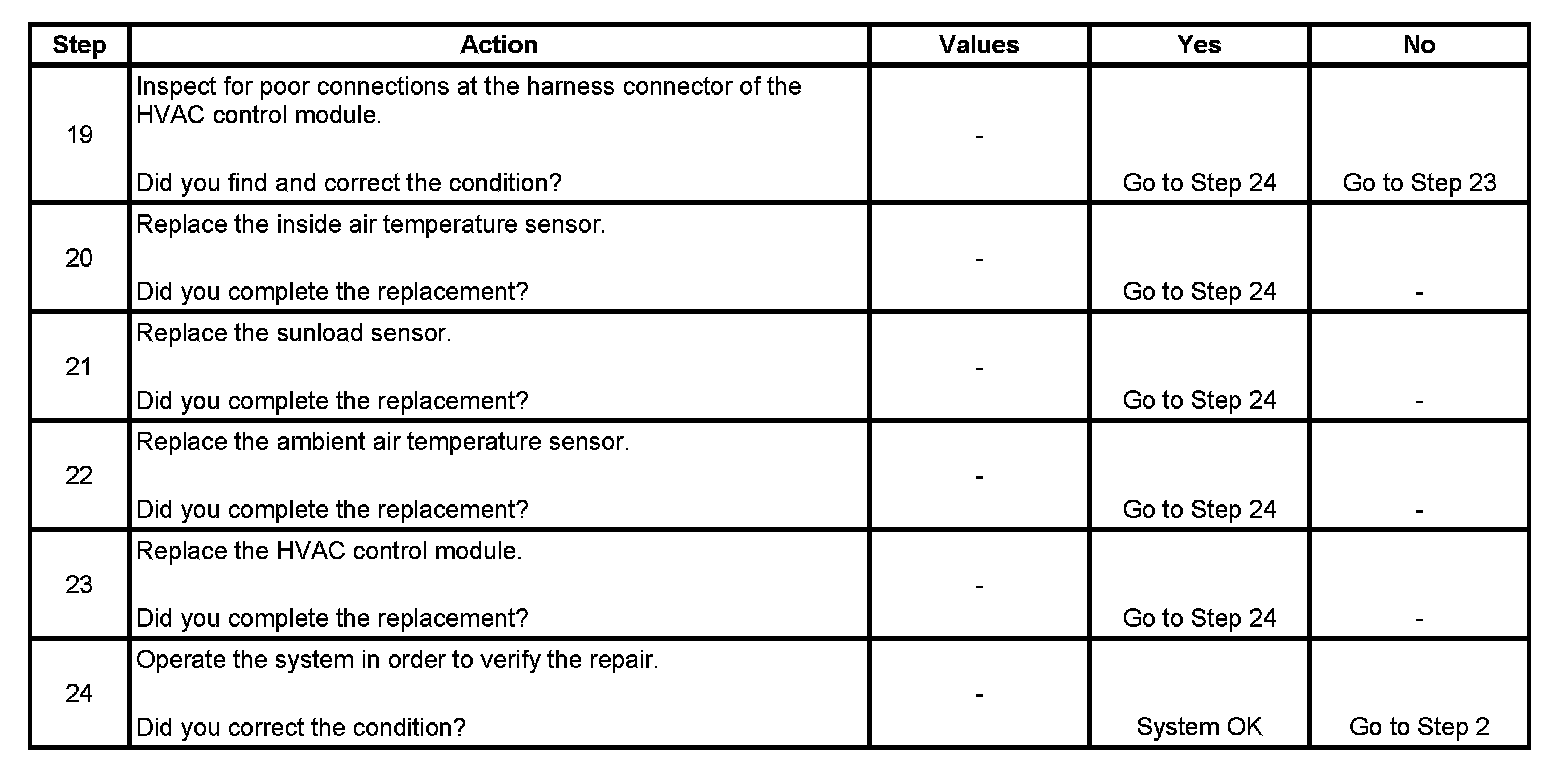

Step 19 - Step 24:

The numbers below refer to the step numbers on the diagnostic table.
5. The ambient air temperature must be above 3°C (38°F) for this A/C compressor test.
6. The specified values are from the A/C System Performance Test.
