Entertainment/Communication Connector End Views

Entertainment/Communication Connector End Views

Audio Coupling Transformer C1 (UMS)

Audio Coupling Transformer C2 (UMS)

Cellular Microphone (UE1)

Digital Radio Receiver (U2K)

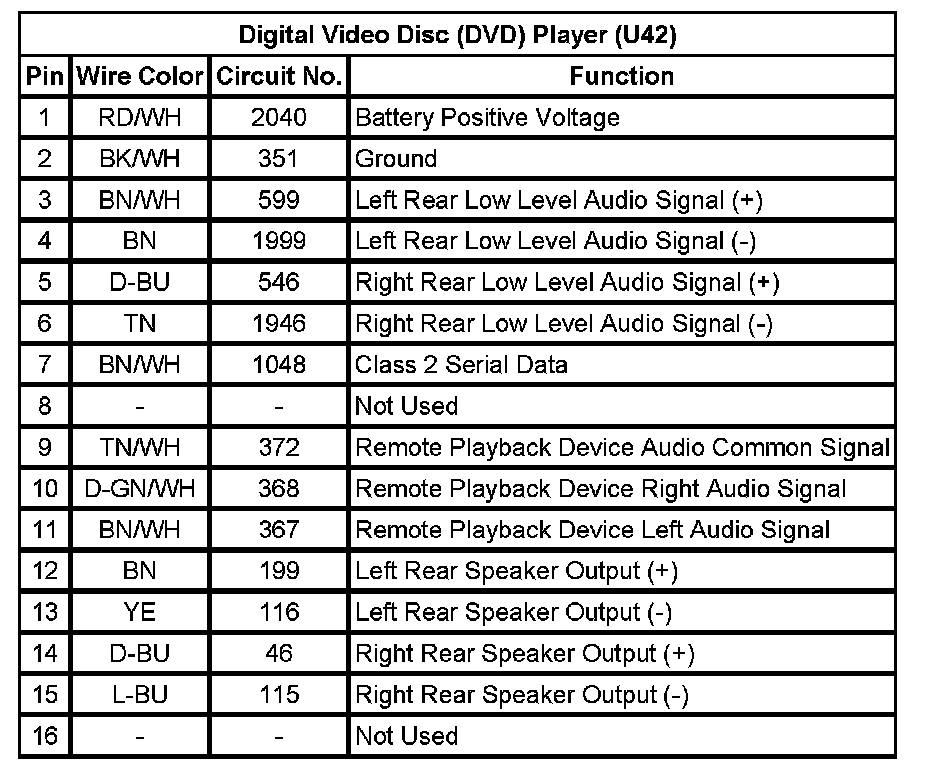

Digital Video Disc (DVD) Player (U42)

Digital Video Disc (DVD) Player C1 (UMS)

Digital Video Disc (DVD) Player C2 (UMS)

Mobile Entertainment Player Module (UMS)

OnStar Button Assembly (UE1)

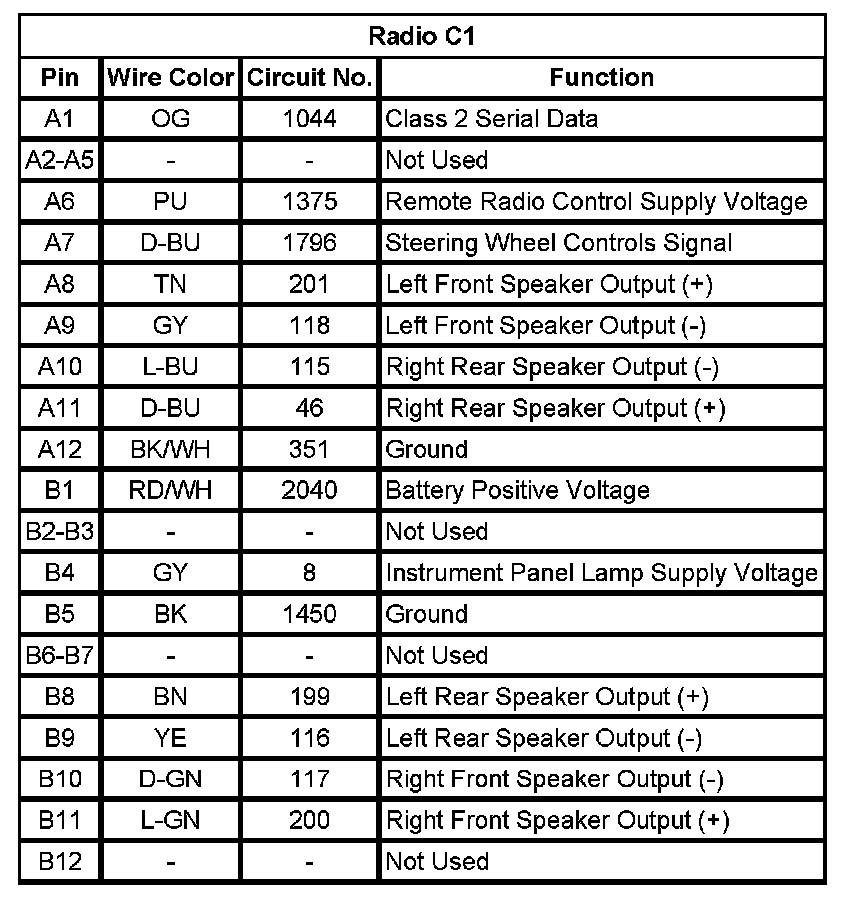

Radio C1

Radio C2

Speaker - LF

A/T Shift Lock Control Solenoid:

Speaker - LR

A/T Shift Lock Control Solenoid:

Speaker - Rear Tweeter - Left

Speaker - Rear Tweeter - Right

Speaker - RF

A/T Shift Lock Control Solenoid:

Speaker - RR

A/T Shift Lock Control Solenoid:

Steering Wheel Control Switch Assembly - Left (UK3)

Steering Wheel Controls - Right (UK3):

Steering Wheel Control Switch Assembly - Right (UK3)

Vehicle Communication Unit (VCU) C1 (UE1)

Vehicle Communication Unit (VCU) C2 (UE1)
