Rear Seat Replacement (w/SIAB)

Rear Seat Replacement (w/SIAB)

Removal Procedure

1. Disable the SIR.




2. Slide the rear seat to the most rearward position.
3. Fold the seat back so it is flat.

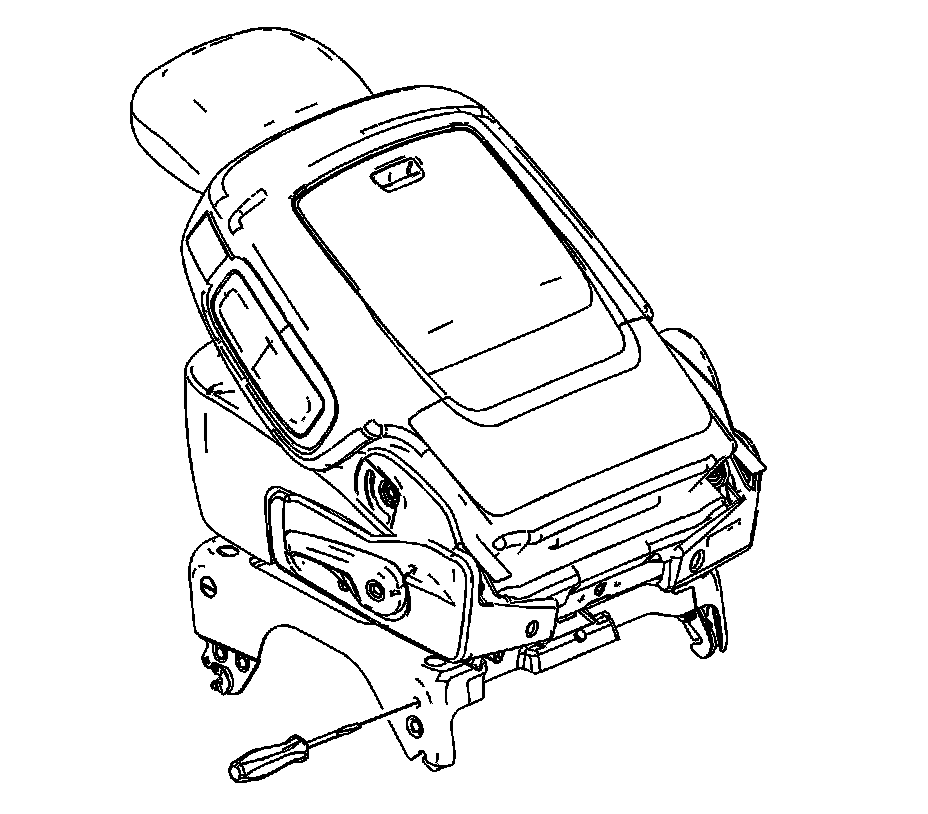

4. Use a flat bladed screwdriver to manually release the latch by turning the slot on the side of the seat riser.
5. Tilt the rear seat fully upwards.
6. Lift the rear seat from the latch.
7. Remove the rear seat from the vehicle.

Installation Procedure




1. Install the rear seat to the vehicle.
2. Secure the front seat riser latches into the floor.
Ensure that the latch is secured on both pins.
3. Tilt the rear seat assembly down and latch the rear seat riser latches into the floor.
4. Tilt the rear seat back upright.
5. Return the rear seat to its original position.
6. Enable the SIR.
