System Diagram



HVAC Connector End Views

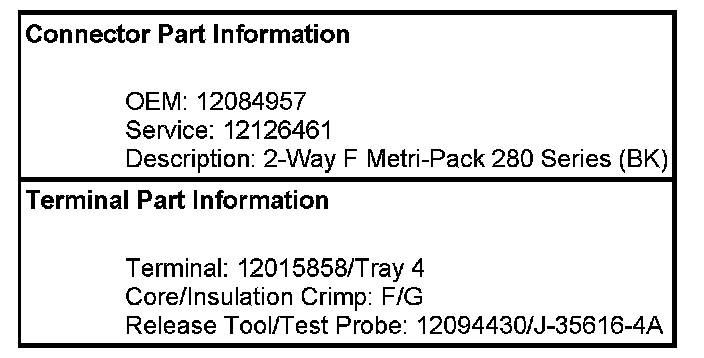

A/C Compressor Clutch

Reverse Lockout Solenoid:














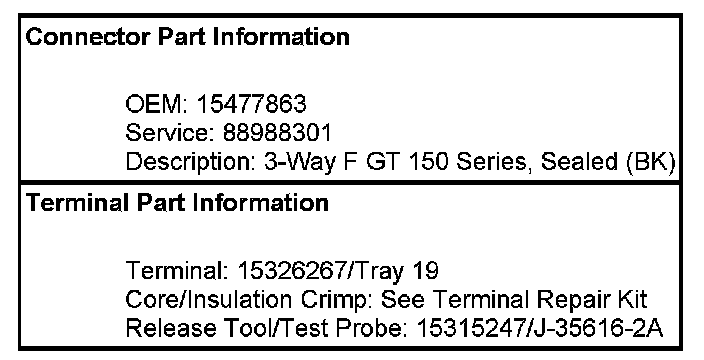

A/C Refrigerant Pressure Sensor

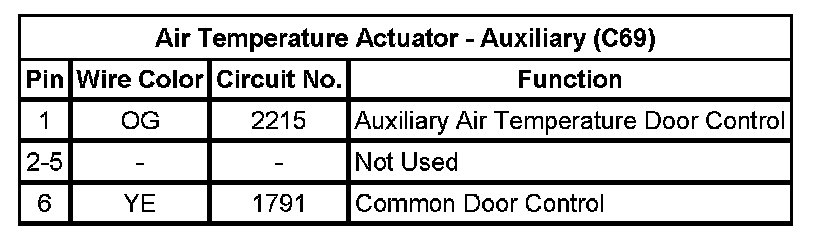

Air Temperature Actuator - Auxiliary (C69)

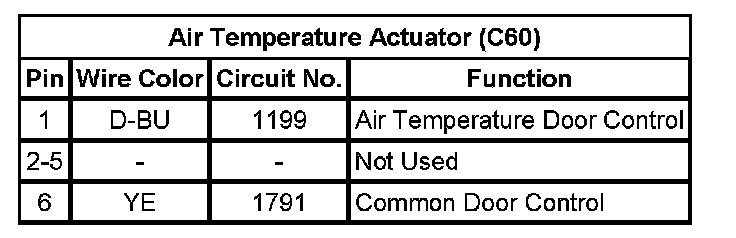

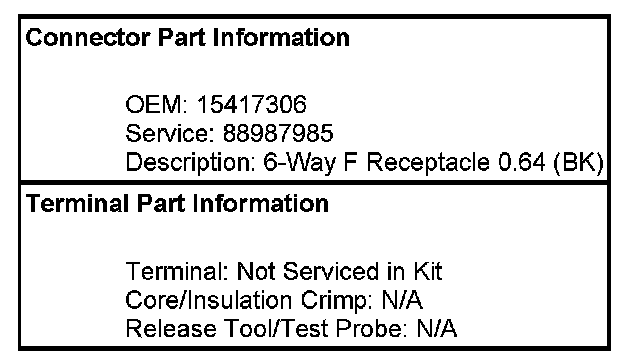

Air Temperature Actuator (C60)

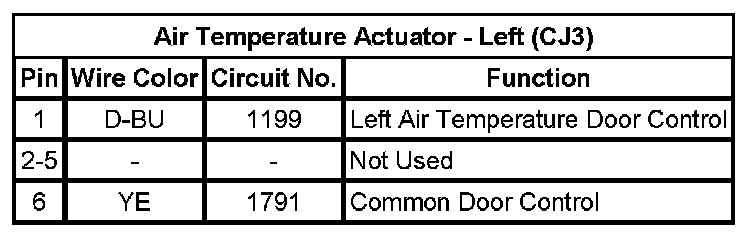

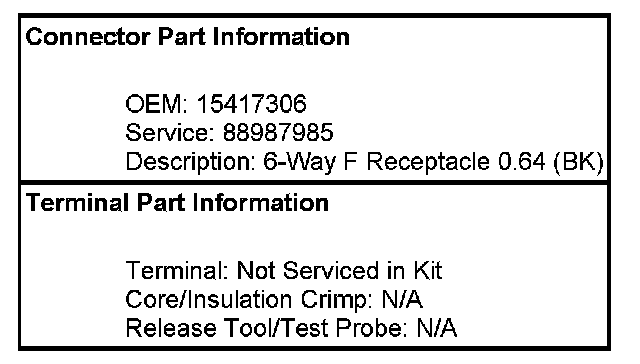

Air Temperature Actuator - Left (CJ3)

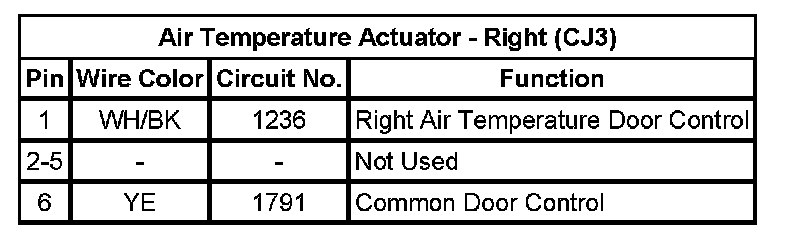

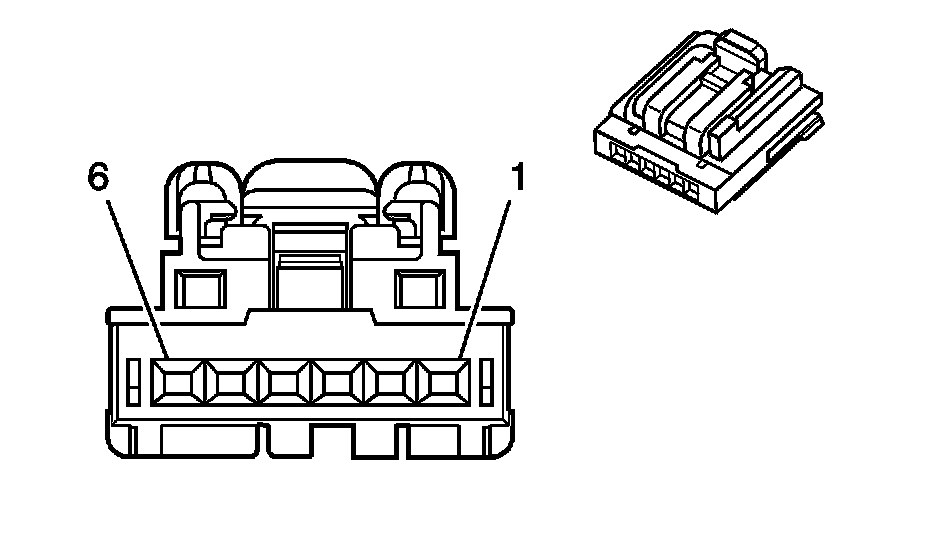

Air Temperature Actuator - Right (CJ3)














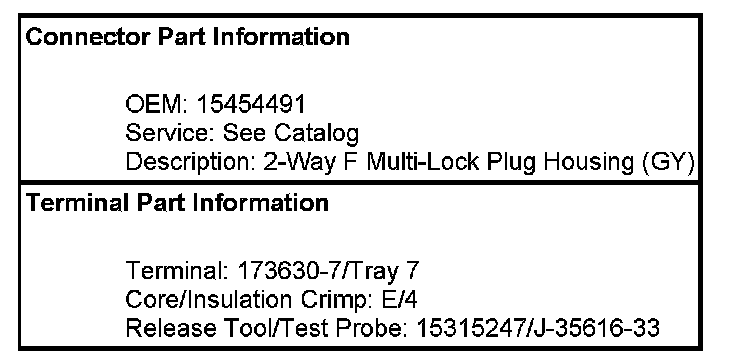

Blower Motor

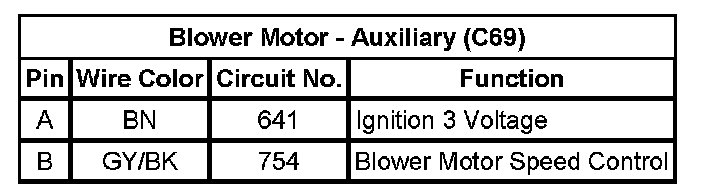

Blower Motor - Auxiliary (C69)














Blower Motor Control Module - Auxiliary (C69)














Blower Motor Resistor Assembly

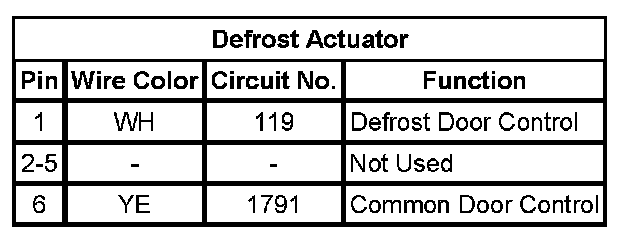

Defrost Actuator














Evaporator Temperature Sensor

A/T Shift Lock Control Solenoid:














HVAC Control Module C1














HVAC Control Module C2














HVAC Control Module C3














Mode Actuator - Auxiliary (C69)

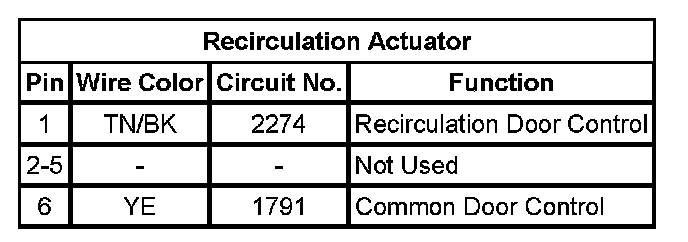

Recirculation Actuator














Vent and Floor Actuator
