Air Bag Control Module

Component Connector End Views

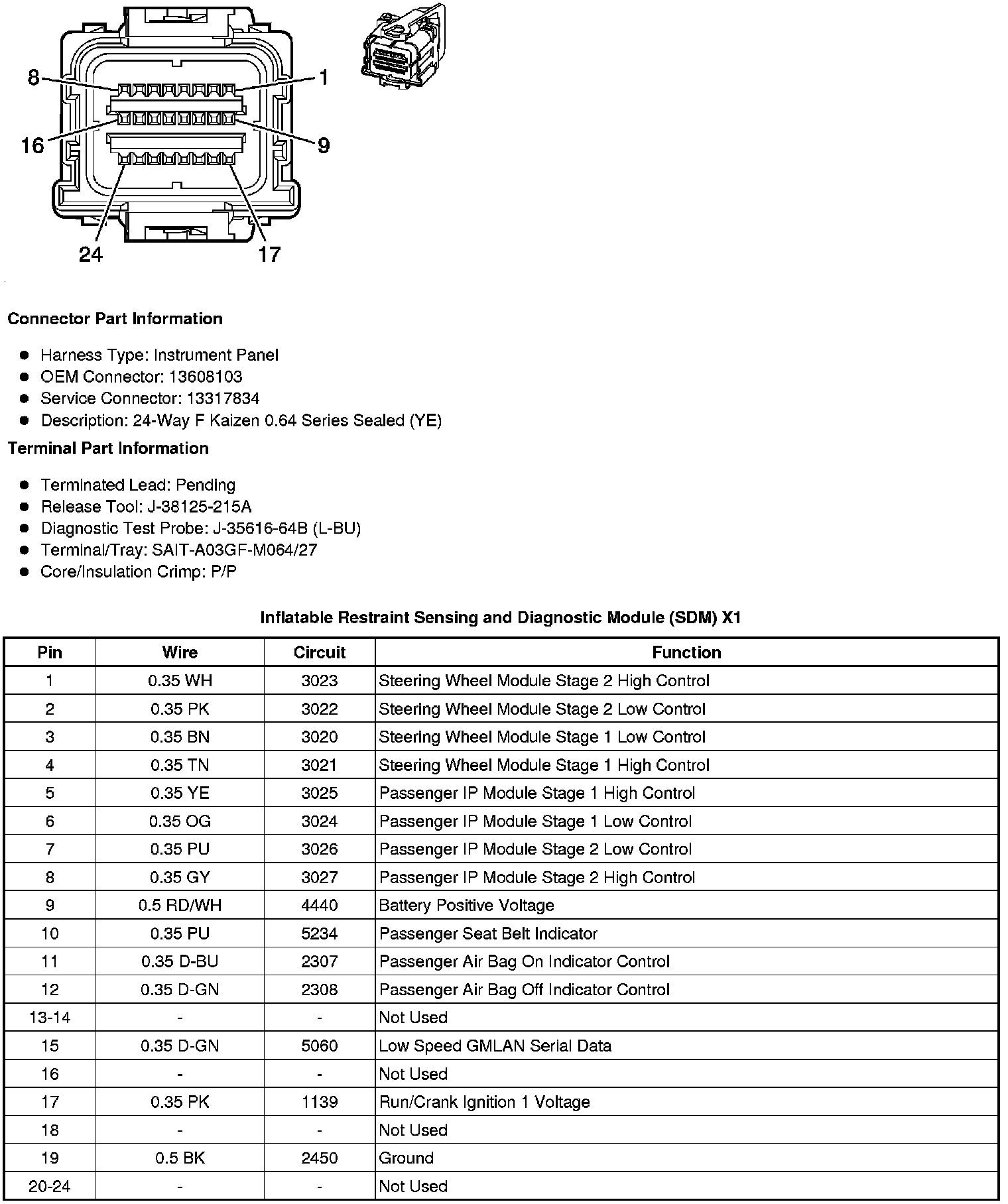

Inflatable Restraint Sensing and Diagnostic Module (SDM) X1

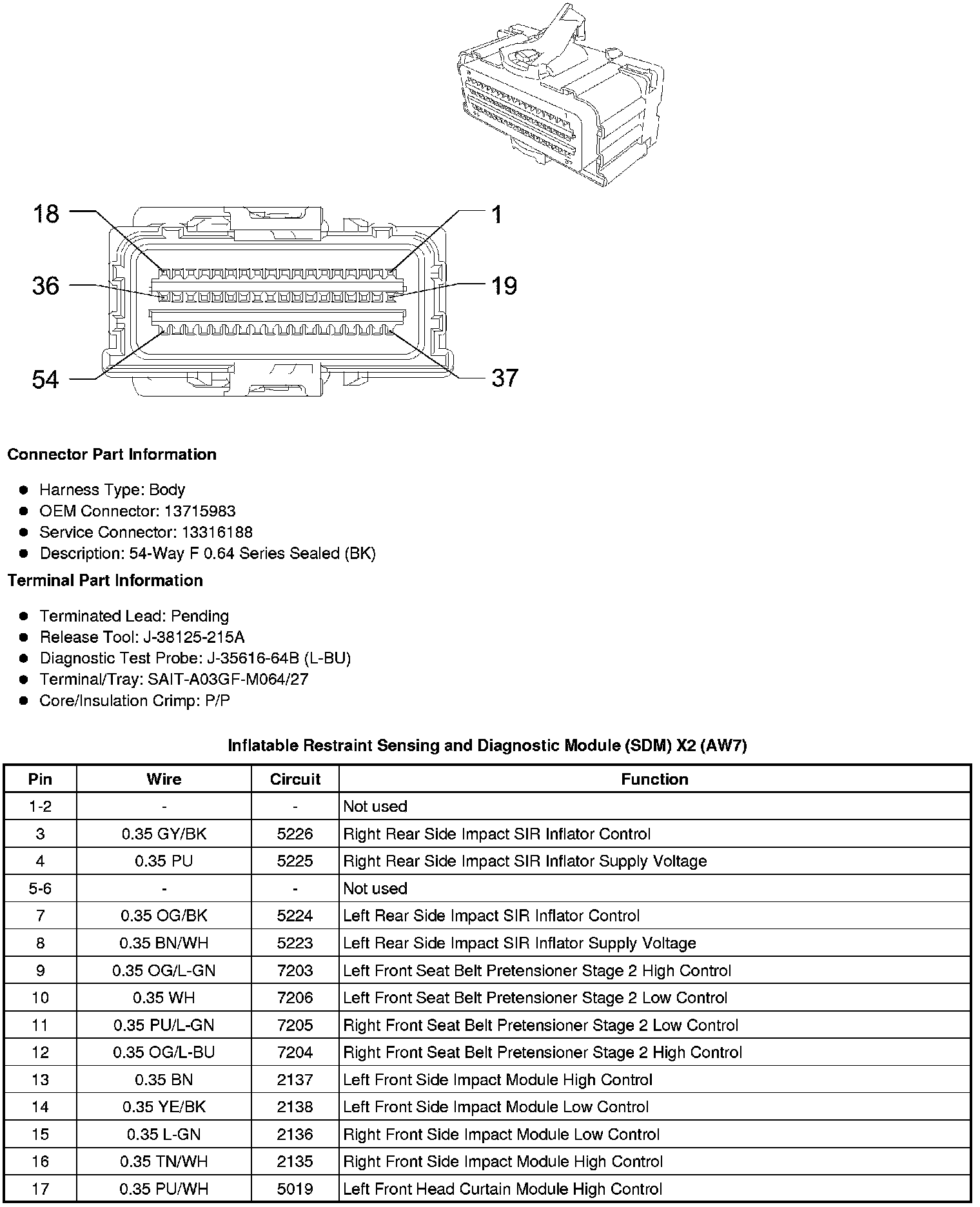

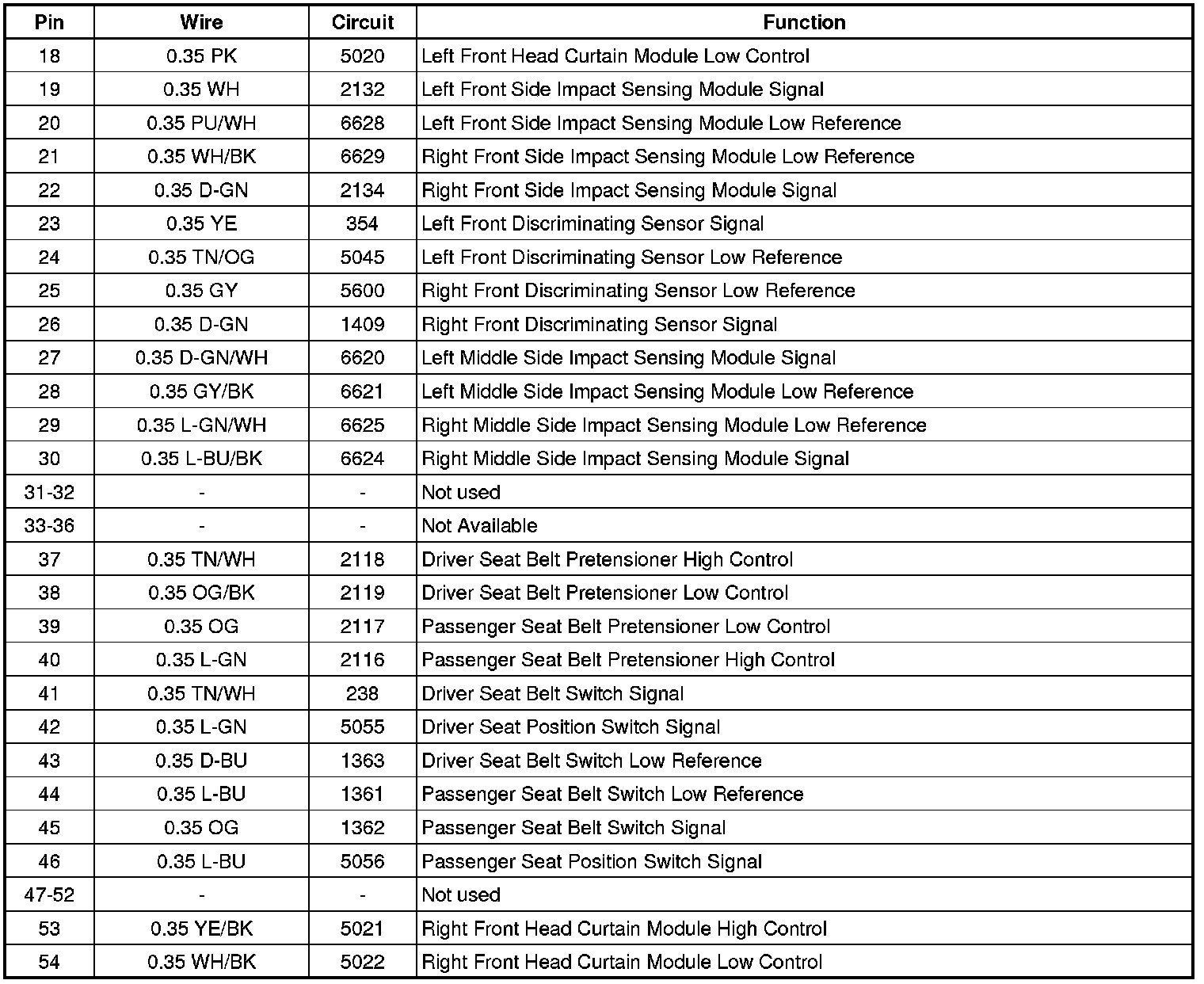

Inflatable Restraint Sensing and Diagnostic Module (SDM) X2 (AW7)

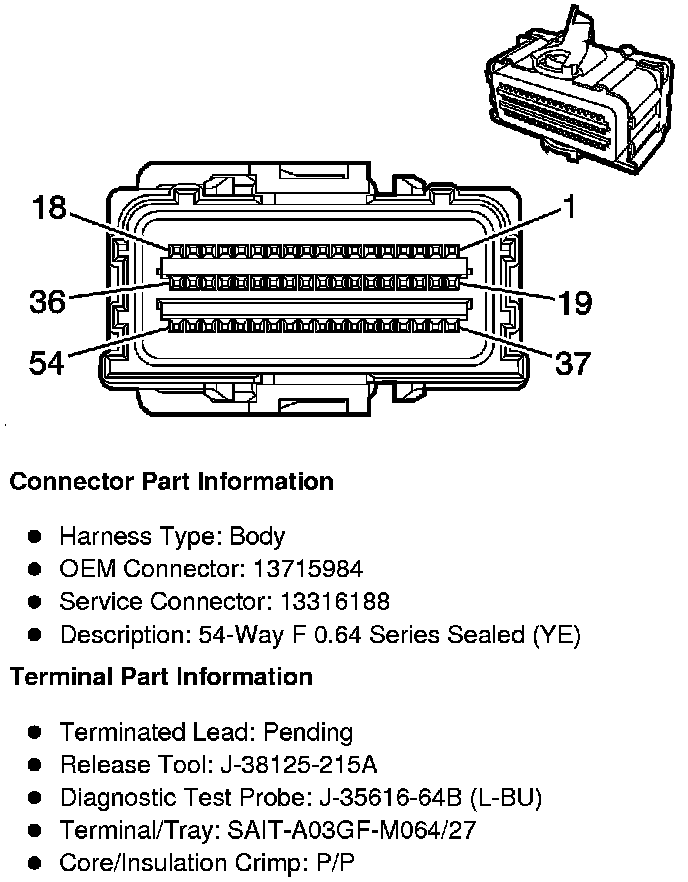

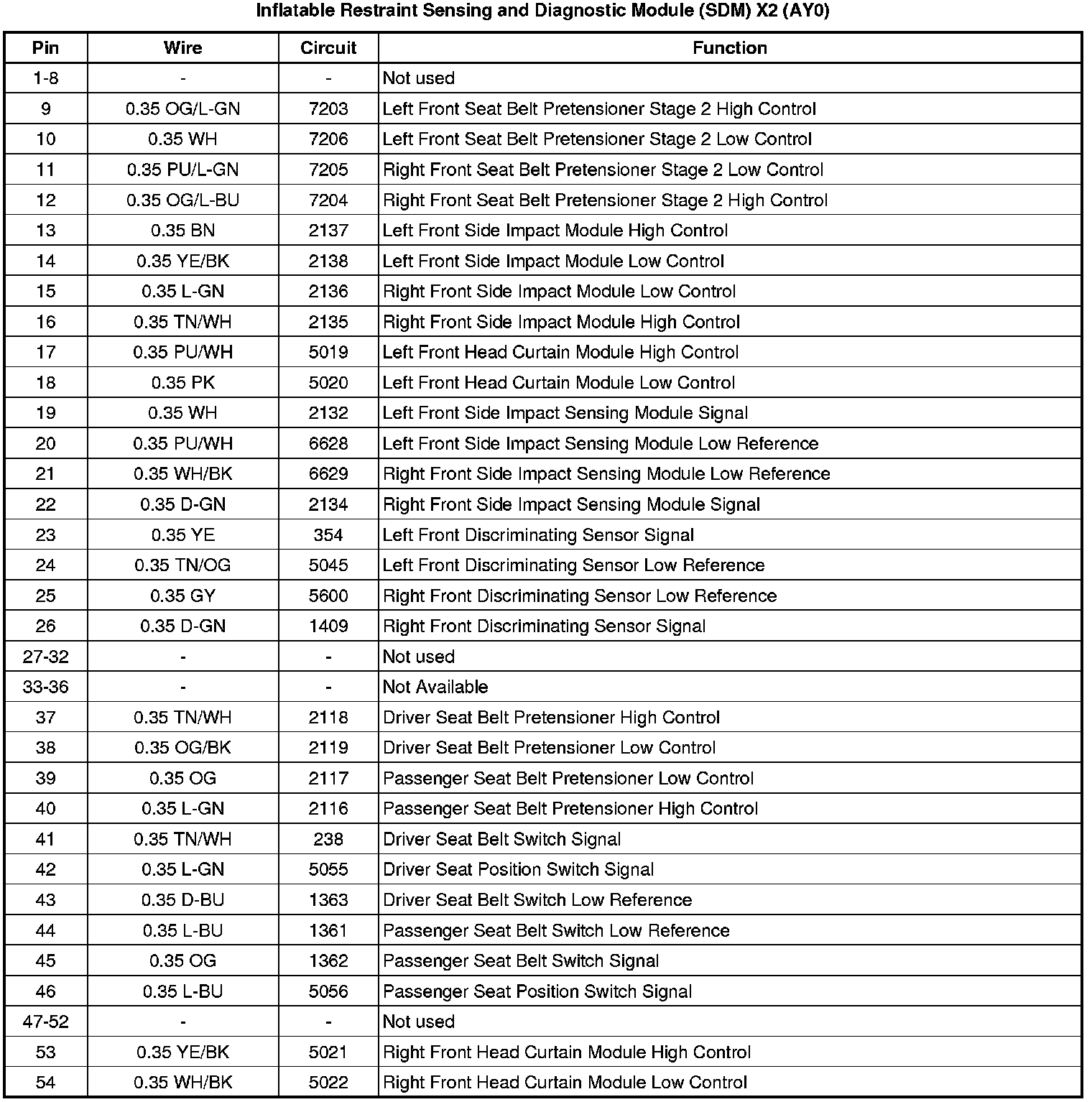

Inflatable Restraint Sensing and Diagnostic Module (SDM) X2 (AY0)
